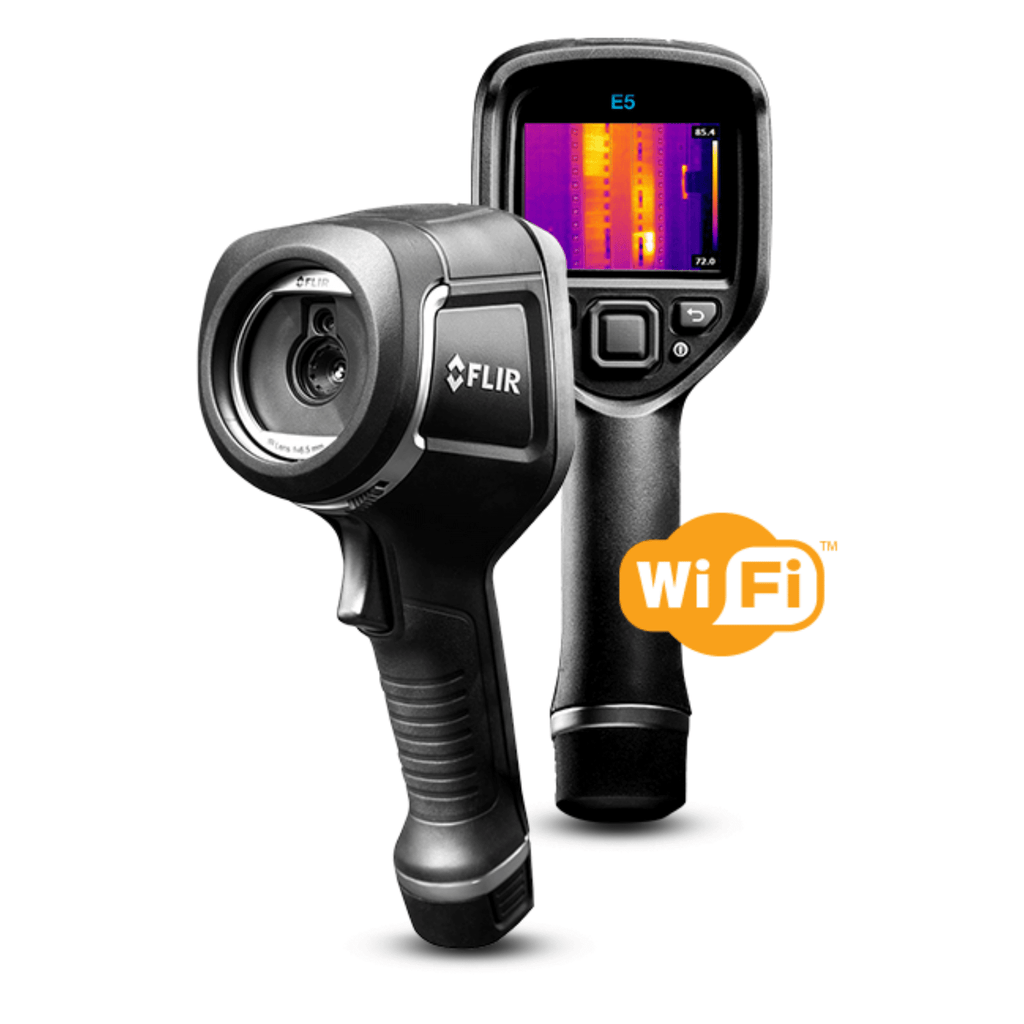

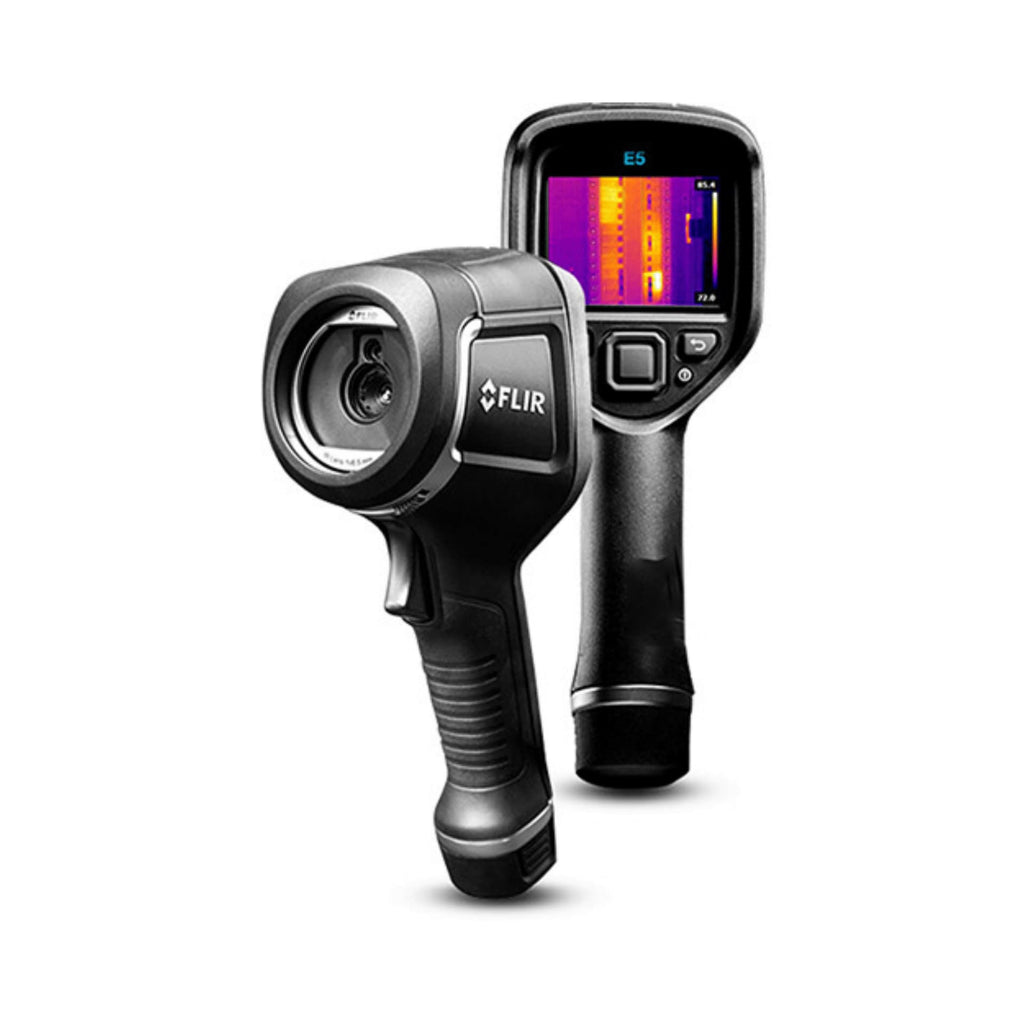

FLIR E5-XT InfraRed Camera With Extended Temperature Range

FLIR E5-XT is the perfect tool for diagnosing electrical, mechanical, and building problems, thanks to its 19.200 (160 × 120) pixel infrared detector and expanded, -20°C to 400°C (-4°F to 752°F) temperature range. FLIR MSX® image enhancement provides extraordinary thermal imaging detail, while the built-in Wi-Fi allows users to quickly connect with the FLIR Tools® Mobile app for sharing images and sending reports easily from any location.



Affordable, Professional Thermal Imaging

  • SIMPLE, INTUITIVE CONTROLS

    Automatic and focus-free, with clear on-screen navigation to measurement tools and settings

  • SHARE IMAGES AND FINDINGS EASILY

    Download standard JPEGS, create reports, and share what you've found via a Wi-Fi connection to the FLIR Tools Mobile app

  • BUILT FOR YOUR TOUGH WORK ENVIRONMENT

    Lightweight and well-balanced, the E5-XT has an IP54 enclosure and easily withstands a 2-meter drop test

SPECIFICATIONS
OVERVIEW
Detector Type
Uncooled microbolometer
IR Resolution
160 × 120 pixels
List of Contents
•Infrared camera •Hard transport case •Battery (inside camera) •USB cable •Power supply/charger with EU, UK, US and Australian plugs •Printed documentation
Packaging Size
385 × 165 × 315 mm (15.2 × 6.5 × 12.4 in)
Set-up Commands
Local adaptation of units, language, date and time formats
Spectral Range
7.5–13 µm
COMPLIANCE & CERTIFICATIONS
Certifications
UL, CSA, CE, PSE and CCC
CONNECTIONS & COMMUNICATIONS
AC Operation
AC adapter, 90–260 VAC input, 5 VDC output to camera
Interface
USB Micro: Data transfer to and from PC and Mac device
WiFi
•Standard: 802.11 b/g/n •Frequency range: •2400–2480 MHz •5150–5260 MHz •Max. output power: 15 dBm
ENVIRONMENTAL
EMC
•WEEE 2012/19/EC •RoHs 2011/65/EC •C-Tick •EN 61000-6-3 •EN 61000-6-2 •FCC 47 CFR Part 15 Class B
Humidity (Operating and Storage)
IEC 60068-2-30/24 h 95% relative humidity
Operating Temperature Range
–15°C to 50°C (+5°F to 122°F)
Radio Spectrum
•Standard: 802.11 b/g/n •Frequency range: •2400–2480 MHz •5150–5260 MHz •Max. output power: 15 dBm
Shock
25 g (IEC 60068-2-27)
Storage Temperature Range
–40°C to 70°C (–40°F to 158°F)
Vibration
2 g (IEC 60068-2-6)
Emissivity table/correction
Emissivity table of predefined materials/variable from 0.1 to 1.0
Encapsulation/Drop
IP 54 (IEC 60529)/2m (6.6 ft.)
IMAGING & OPTICAL
Camera size (L x W x H)
244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in)
Camera weight incl battery
0.575 kg (1.27 lb.)
Color
Black and gray
Color palettes
Black & white, iron, and rainbow
f-number
1.5
Field of view (FOV)
45° × 34°
Focus
Focus free
Image Adjustment
Automatic adjust/lock image
Image Frequency
9 Hz
Image Modes
Thermal MSX, Thermal, Picture-in-Picture, Thermal blending, Digital camera.
Minimum Focus Distance
0.5 m (1.6 ft.)
Multi Spectral Dynamic Imaging (MSX)
IR image enhanced with visible camera detail
Picture-in-Picture
IR area on visual image
Spatial resolution (IFOV)
5.2 mrad
Digital Camera Resolution/FOV
640 × 480/55° × 43°
MEASUREMENT & ANALYSIS
Accuracy
±2°C (±3.6°F) or ±2% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F)
Isotherm
Above alarm, below alarm
Object Temperature Range
–20°C to 400°C (-4°F to 752°F) in two ranges
Reflected apparent temperature correction
Automatic, based on input of reflected temperature
Spot Meter
Center spot; box with min./max.
Thermal Sensitivity/NETD
<0.10°C (0.27°F) / <100 mK
Spotmeter and Area
Center spot; box with min./max.
METER DATA
Display
3.0 in. 320 × 240 color LCD
POWER
Charging system
Battery is charged inside the camera or in specific charger.
Charging Time
2.5 hours to 90% capacity in camera. 2 hours in charger.
Power Management
Automatic shut-down
Battery type & operating time
Rechargeable 3.6 V Li ion battery; approx. 4 hours typical use
STORAGE MEDIA
File Formats
Standard JPEG, 14-bit measurement data included
