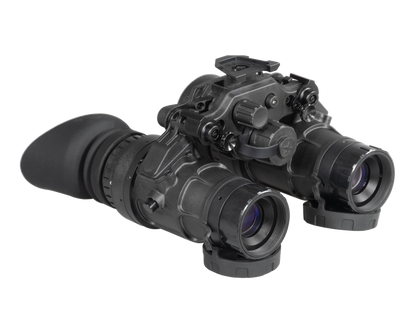

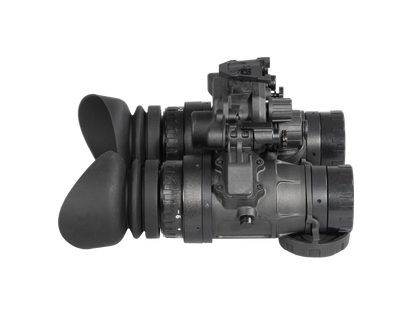

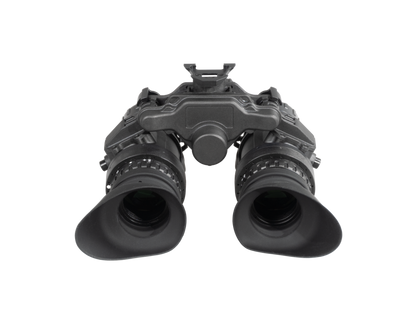

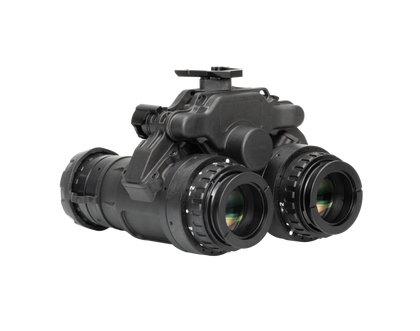

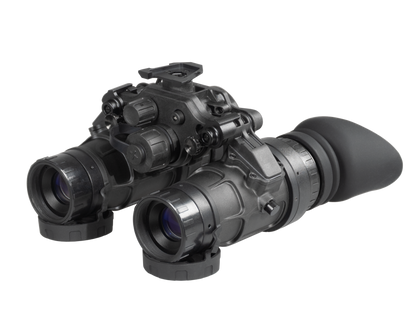

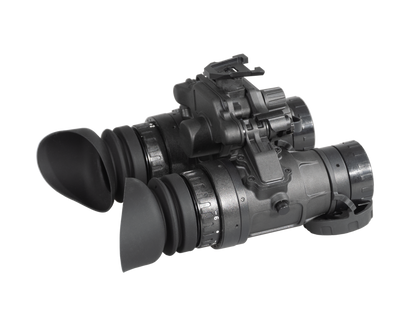

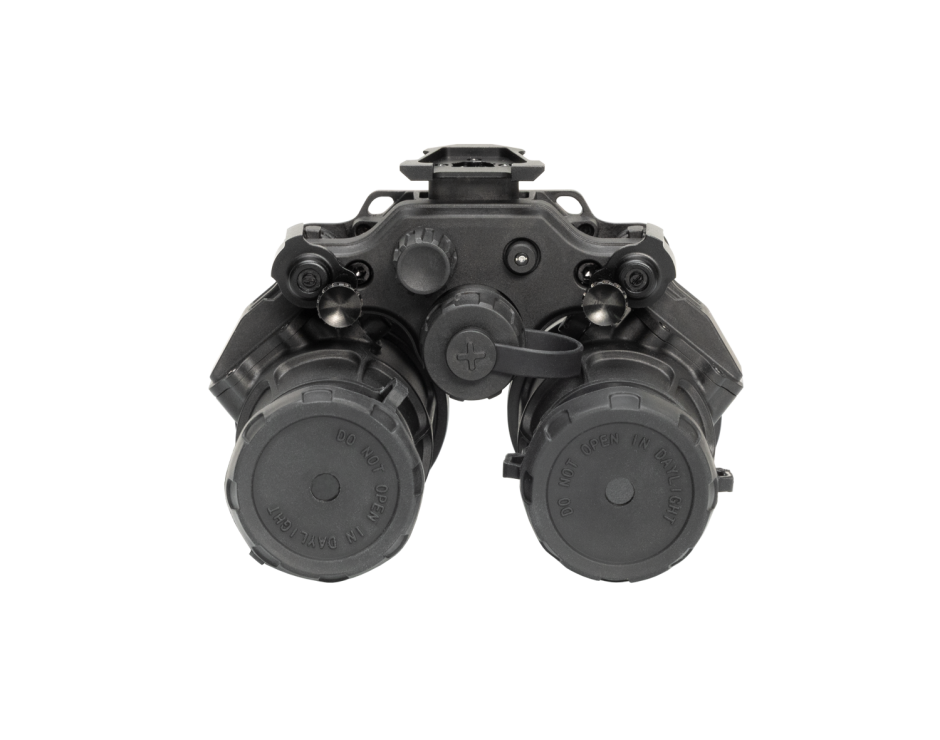

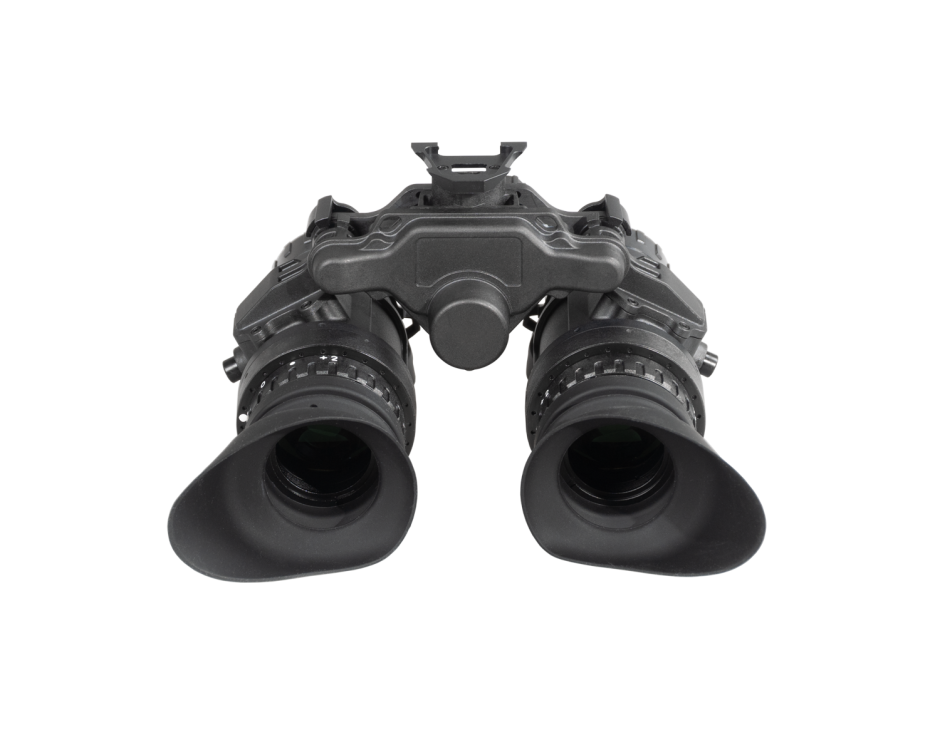

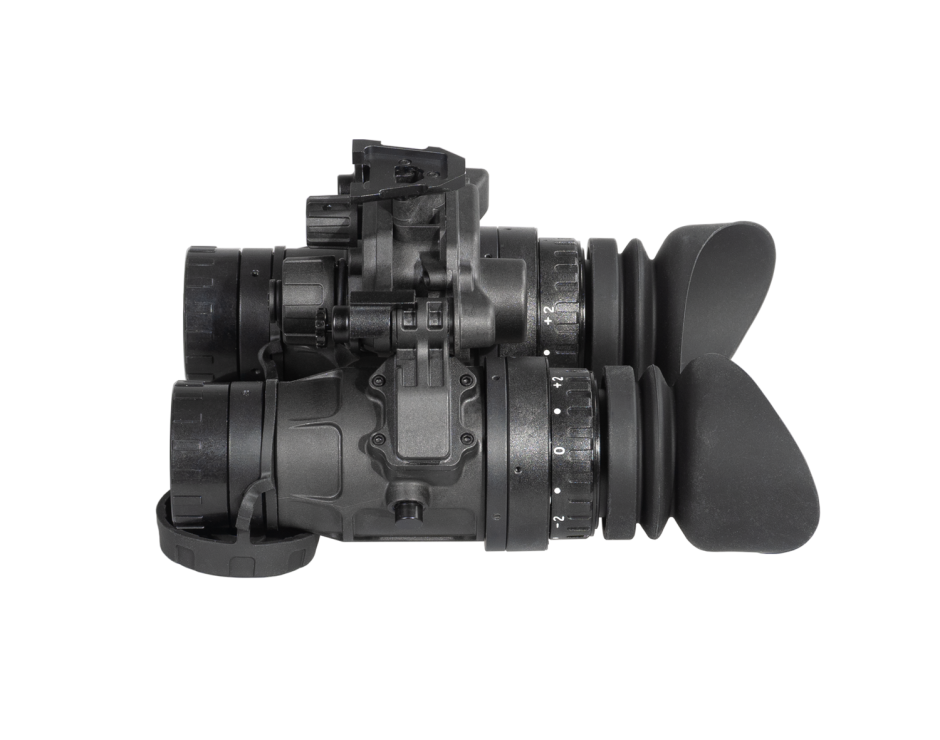

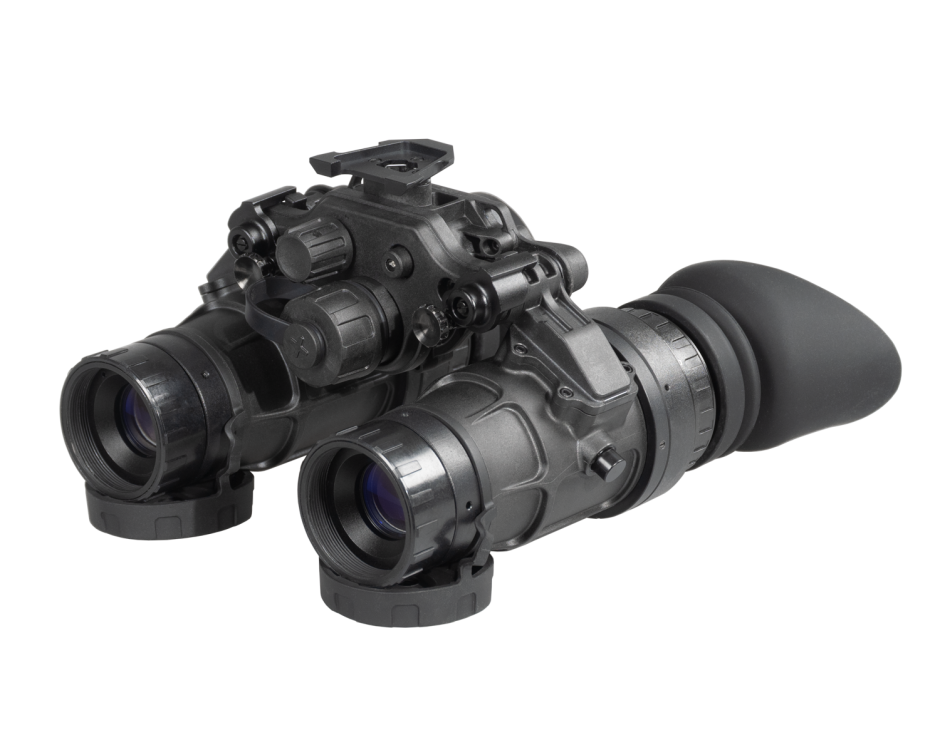

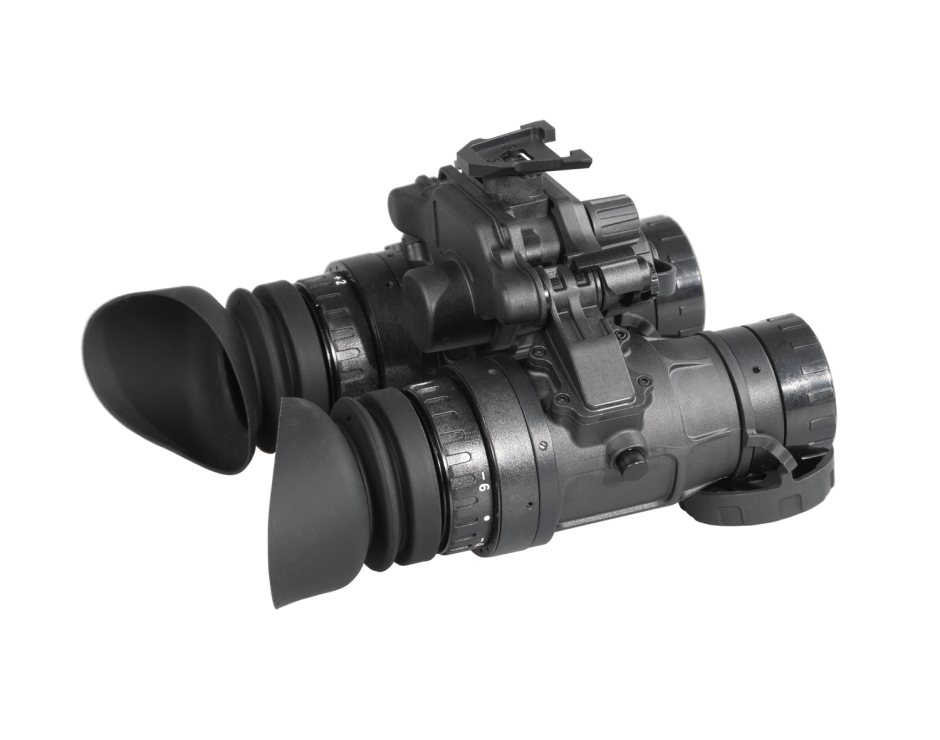

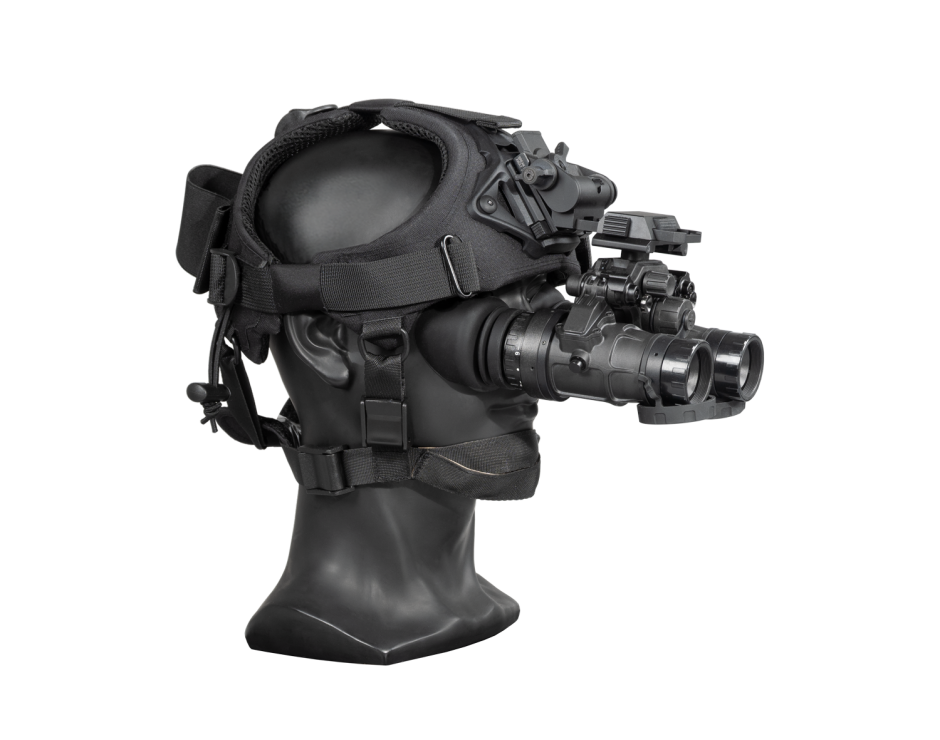

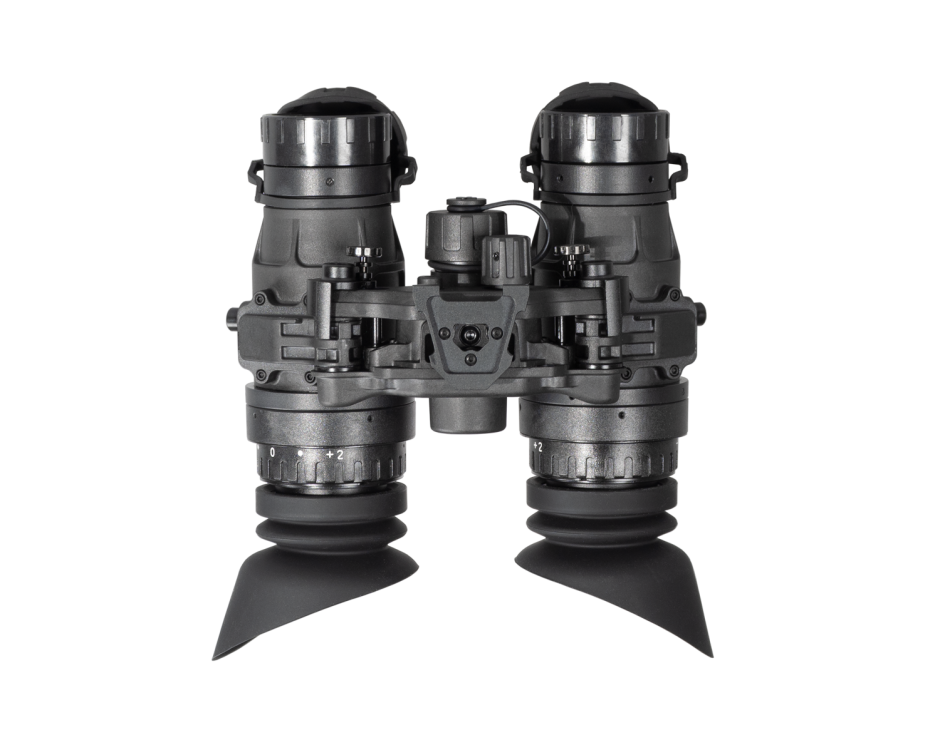

The AGM UNVG is a dual-channel night vision system. The UNVG uses advanced multi-coated optics and is built to last with a compact composite housing. The device can be outfitted with a Gen 2+ or Gen 3 high-performance image intensifier tube (IIT). The UNVG is also equipped with manual gain control, which adjusts the image brightness, providing the highest possible image quality even in changing light conditions. The independent movement of the tube pods allows for single or dual eye configurations for increased operational flexibility. Each tube automatically turns off when its pod is turned sideways. Operating from a single AA alkaline battery, the UNVG can run up to 15 hours. With an external battery pack (included), the operating time increases to 50 hours! Also equipped with an integral infrared illuminator for reading in the dark. The device can be installing to a either standard dovetail type headset and helmet mount.

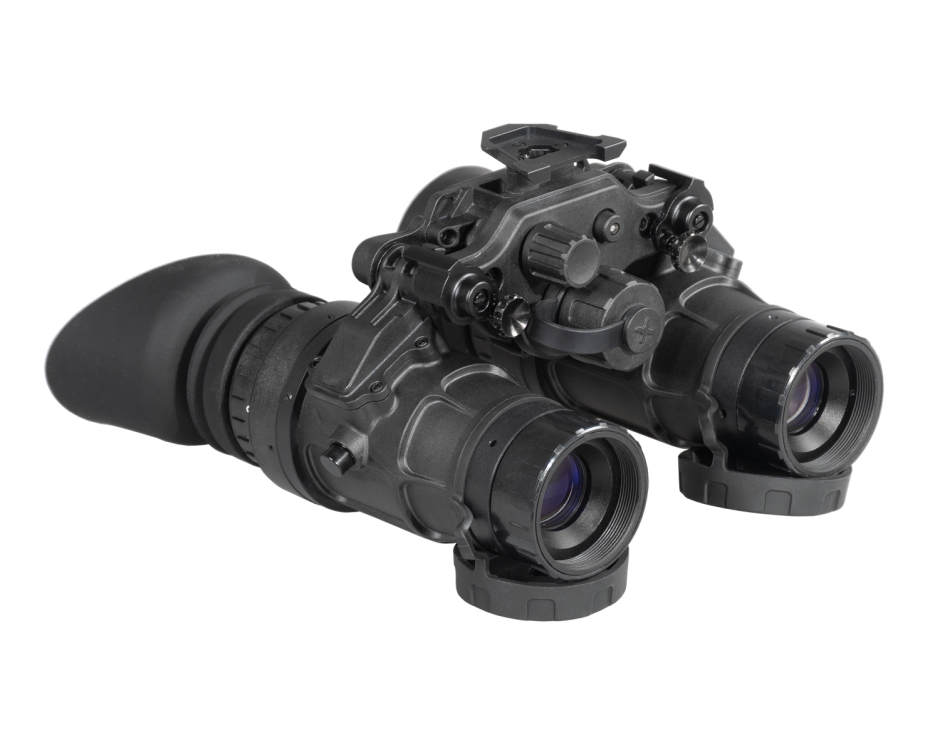

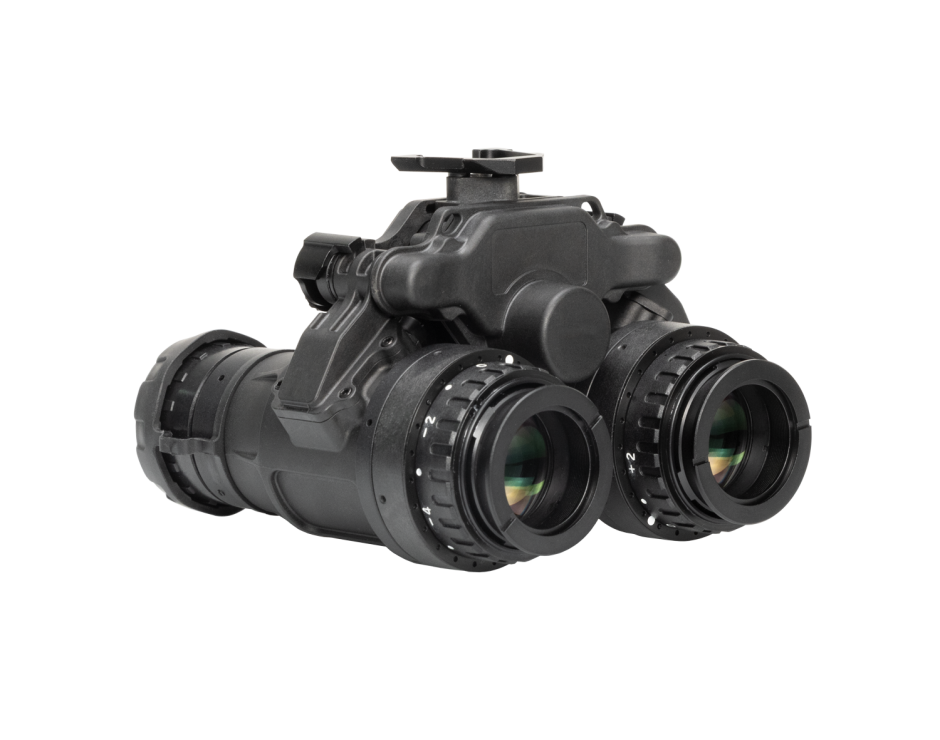

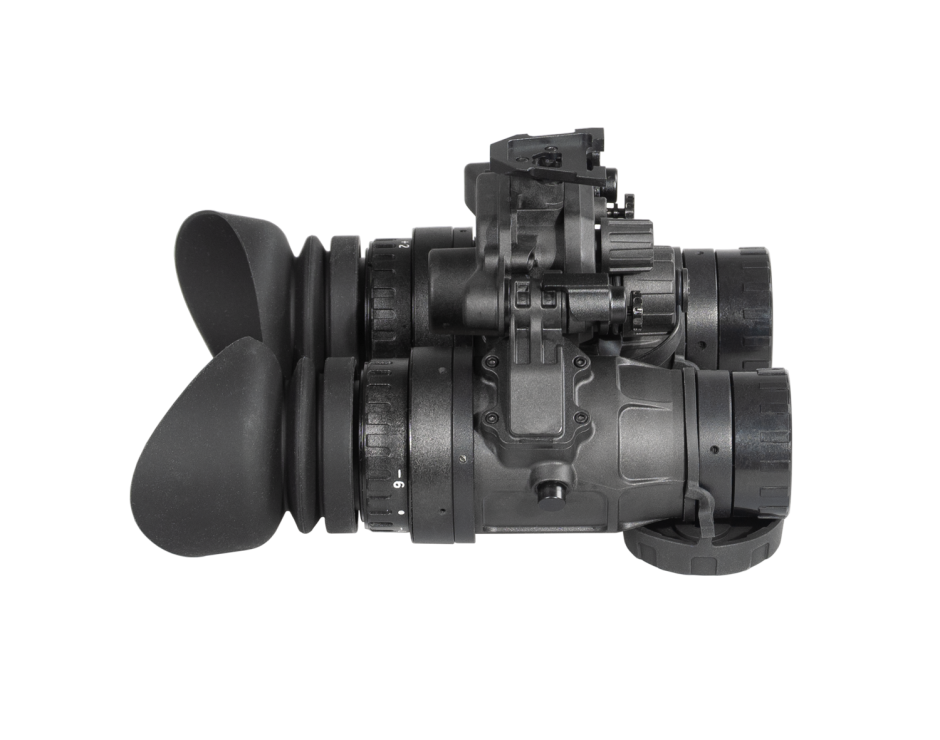

AGM UNVG, Ultralight, Gen 2+, 51 Degree, White Phosphor NVG

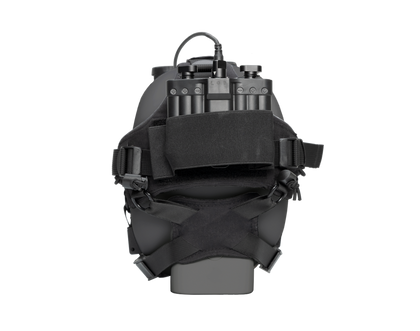

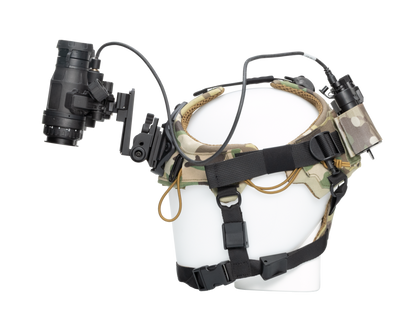

Low Power Consumption Design: Utilizes single AA battery or external battery pack.
Auto Off Feature: Each tube automatically turns off when its pod is turned sideways.
Ultralight Housing: 17.6 oz / 500 g weight means improved mobility, responsiveness, and reduced fatigue.
Single/Double Eye Configuration: Pods independently adjustable for improved operational flexibility.
Corrosion and Impact-Resistant Housing: Matte black finish with PEEK+Glass fiber material for longevity.
IR Complement Function: Infrared illuminator for enhanced visibility in total darkness and close quarters environments.

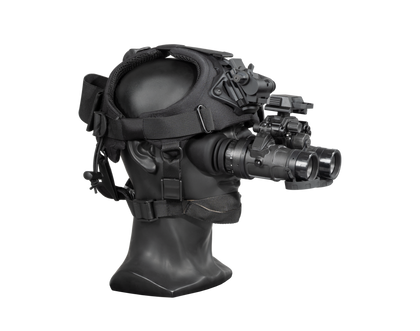

Quick Attachment Design: Dovetail base support for strong compatibility and durability.
PVS-14-style Compatible: Objective lens and eyepiece lens are compatible with PVS-14 style components and attachments.

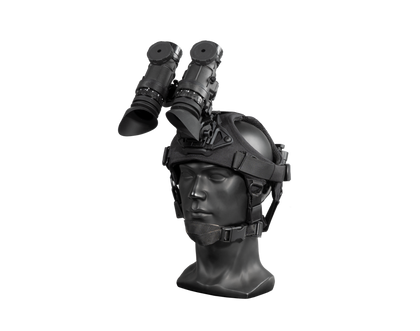

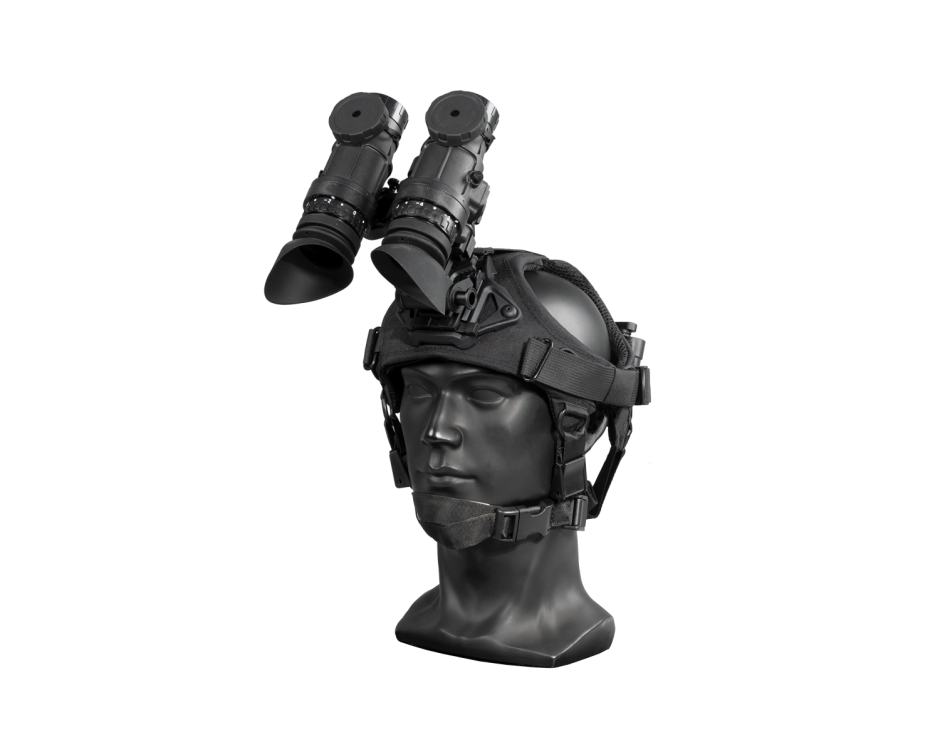

Independent Pod Movement: Pods can roll up and down for quick configuration changes.
Key Highlights
Gen 2+ “AP” FOM 1800+
1x Magnification + 40° Wide FOV
Independent Pod Movement
Manual Gain Control
Up to 50 Hours Runtime with Battery Pack
Extremely Lightweight — 500 g
| SPECIFICATIONS | |
| Interpupillary Distance | 56 to 72 mm |
| External Power Supply | Yes (2.8-4.2V) |
| Image Intensifier Tube | Image Intensifier Tube: Gen 2+ "White Phosphor Level 1" |
| Resolution | 51-64 lp/mm |
| Field of view cleanness by zone | Gen 2 IIT NW1 is the highest resolution and the cleanest offered by AGM. There are practically no visible spots in Zone 1. |
| Magnification | 1x |
| Lens System | 19mm, F/1.26 |
| FOV | 51° |
| Focus Range | 0.25 m to infinity |
| Eye Relief | 17 mm |
| Diopter Adjustment | -6 to +2 diopters |
| Manual Gain Control | Yes |
| Automatic Shut-Off System | Yes |
| Infrared Illuminator | Yes |

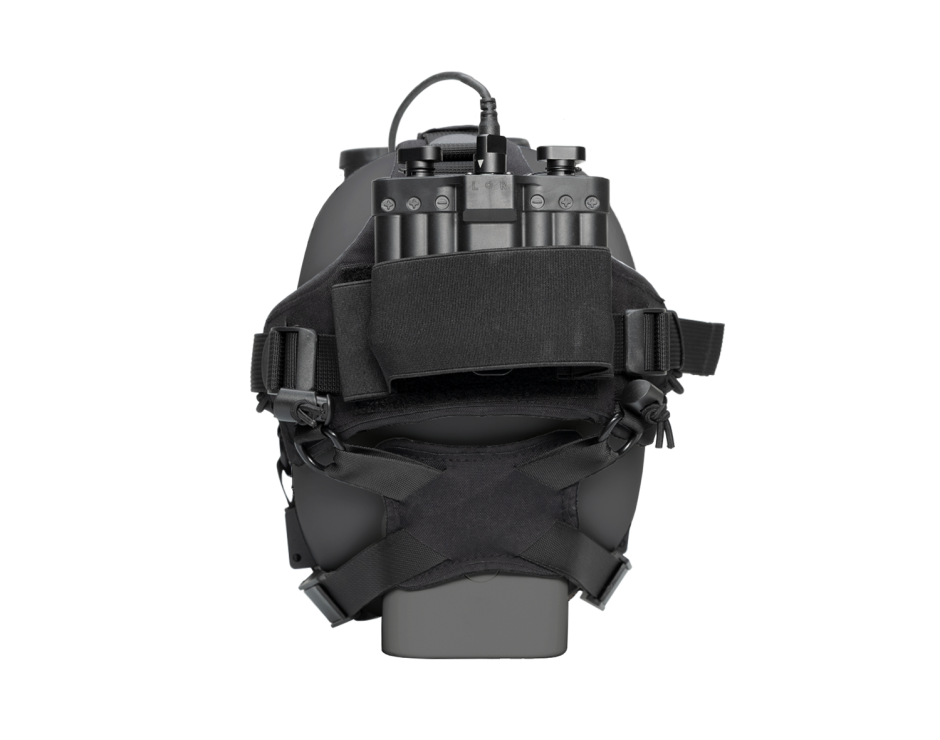

| Battery Type | One AA (1.5 V) or External Battery Pack (four AA or two CR123A) |
| Exit Pupil Diameter | 12 mm |
| Operating Temperature Range | -40°C to +50°C (-40°F to +122°F) |
| Storage Temperature Range | -50°C to +70°C (-58°F to +158°F) |
| Weight | Goggles: 550 g (1.2 lb) External Battery Pack: 250 g (0.55 lb) |
| Overall Dimensions | Goggles: 101 × 116 × 85 mm (4.0 × 4.6 × 3.3 in) External Battery Pack: 102 × 86 × 34 mm (4.0 × 3.4 × 1.3 in) |

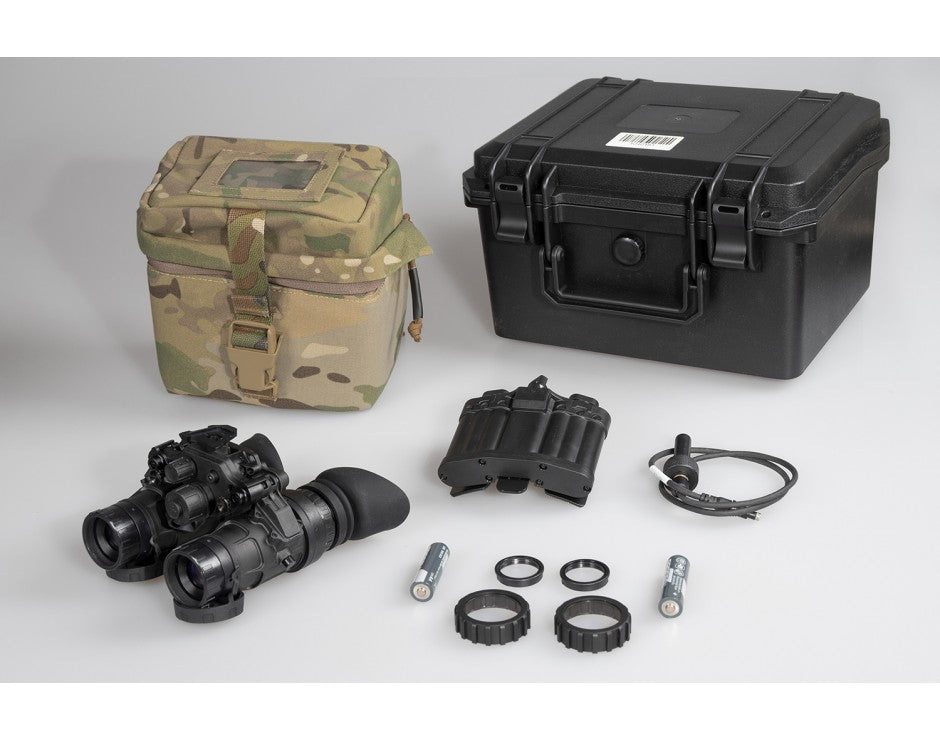

| Package Includes | Night Vision Goggles, External Battery Pack, Connecting Cable with Battery Adapter, Demist Shield (2), Sacrificial Window (2), Neck Strap, Carrying Case, Lens Cloth, User Manual, AA Battery |
| Protection Level | IP67 |
EXPORT NOTICE
This product is subject to US export regulations and may require a license prior to export. Any diversion contrary to US law is prohibited.
