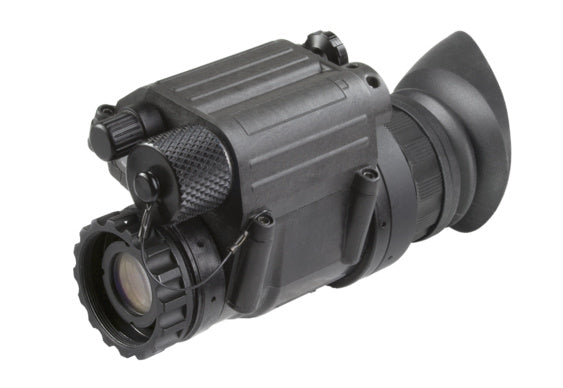

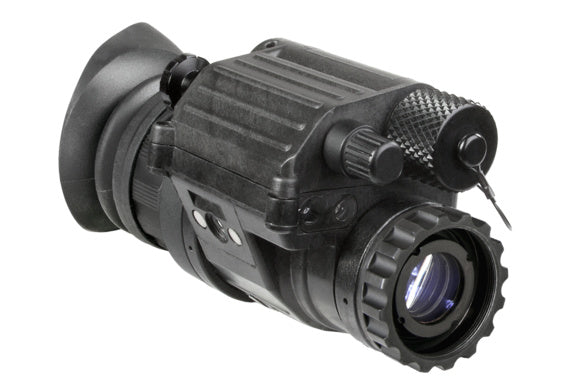

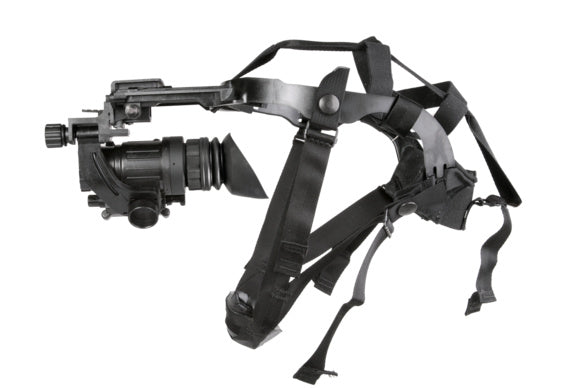

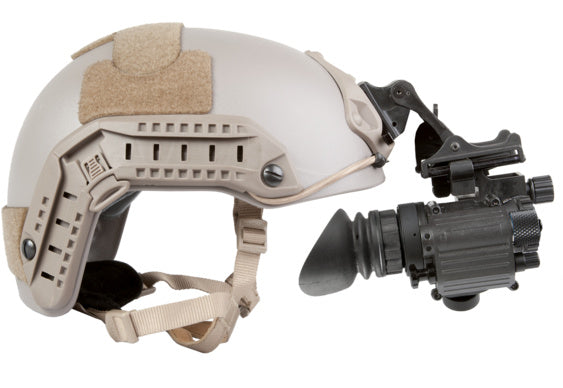

The AGM PVS14-51 Night Vision Monocular is a rugged, lightweight, multi-purpose night vision device that has repeatedly proven itself in combat. This monocular is used globally in some of the most challenging environments. The PVS-14 can be used as a hand-held device, or mounted on the included head harness. With the proper accessories, it can also be mounted to combat helmets or weapons, providing night vision capabilities to daytime optical sights. The PVS14-51 monocular conforms to 810G Military standards, and is of the highest quality form and function.
The PVS14-51 has an extended field of view. Its 51° FOV overs a large visual range, without requiring the operator to shift the position of the device. The PVS14-51 monocular is a full-featured unit, weighing less than 10.6 ounces/300 grams. The unit includes manual gain control, an automatic bright light shut-off feature, and a built-in Infrared (IR) illuminator. The bright light shut-off feature ensures that the high-quality photocathode tube is protected. AGM’s PVS14-51 includes an array of optional accessories to support virtually any operation.
AGM PVS14-51 NL2i Night Vision Monocular 51 degree FOV Gen 2+ "Level 2"
Description and Features
Key Features
- Wide 51° field of view
- Compact, rugged design
- Waterproof
- Head or helmet-mountable for hands-free usage
- Ergonomic, simple, easy-to-operate controls
- Built-in Infrared illuminator and flood lens
- Limited 3-Year warranty
Specifications | |
Image Intensifier Tube |
Gen 2+ "Level 2" International |
Resolution |
45-57 lp/mm |
Cosmetic level of IIT |
NL2i second-best quality |
Magnification |
1x |
Lens System |
19 mm; F/1.26 |
FOV |
51° |
Focus Range |
0.25 m to infinity |
Diopter Adjustment |
-6 to +2 diopters |
Led Indicators |
- Low Battery - IR On - Excessive Light Conditions |
Infrared Illuminator |
Yes |
Manual Gain Control |
Yes |
Bright Light Cut-Off |
Yes |
Battery Type |
One AA 1.5V Alkaline battery |
Battery Life (Operating) |
Up to 50 hours at 20°C |
Operating Temperature Range |
-51° C to +49° C (-60° F to 120° F) |
Storage Temperature Range |
-51° C to +85° C (-60° F to 185° F) |
Weight |
300 g (10.6 oz) |
Overall Dimensions |
102 × 63 × 69 mm (4.0 × 2.5 × 2.7 in) |
Package Includes |
Night Vision Monocular, Head Mount Assembly, Brow Pad, Eye Cup, Helmet/ Head Mount Adapter, System Soft Carrying Case, Daylight Filter, Shoulder Strap, Lens Tissue, Sacrificial Window, Demist Shield, Manual, Battery |
Documents:
EXPORT RESTRICTIONS:
Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
