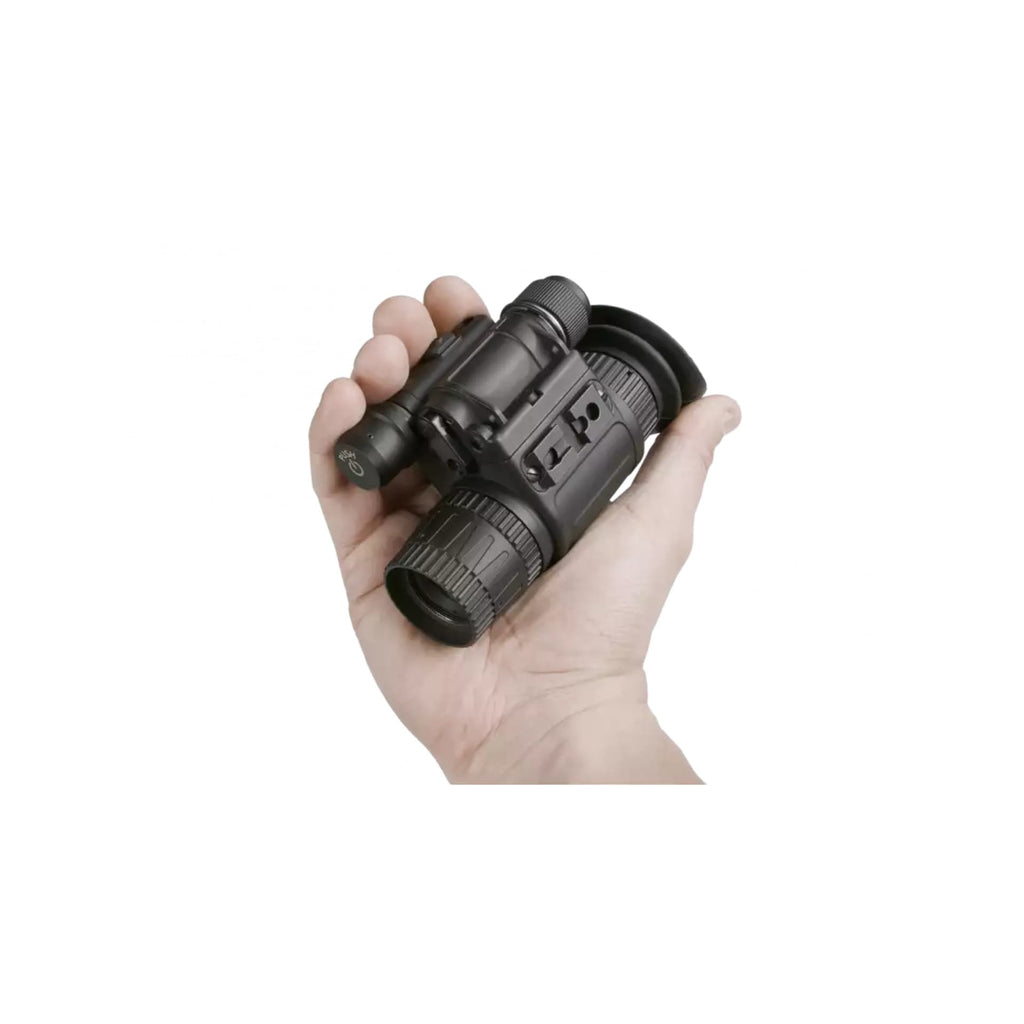

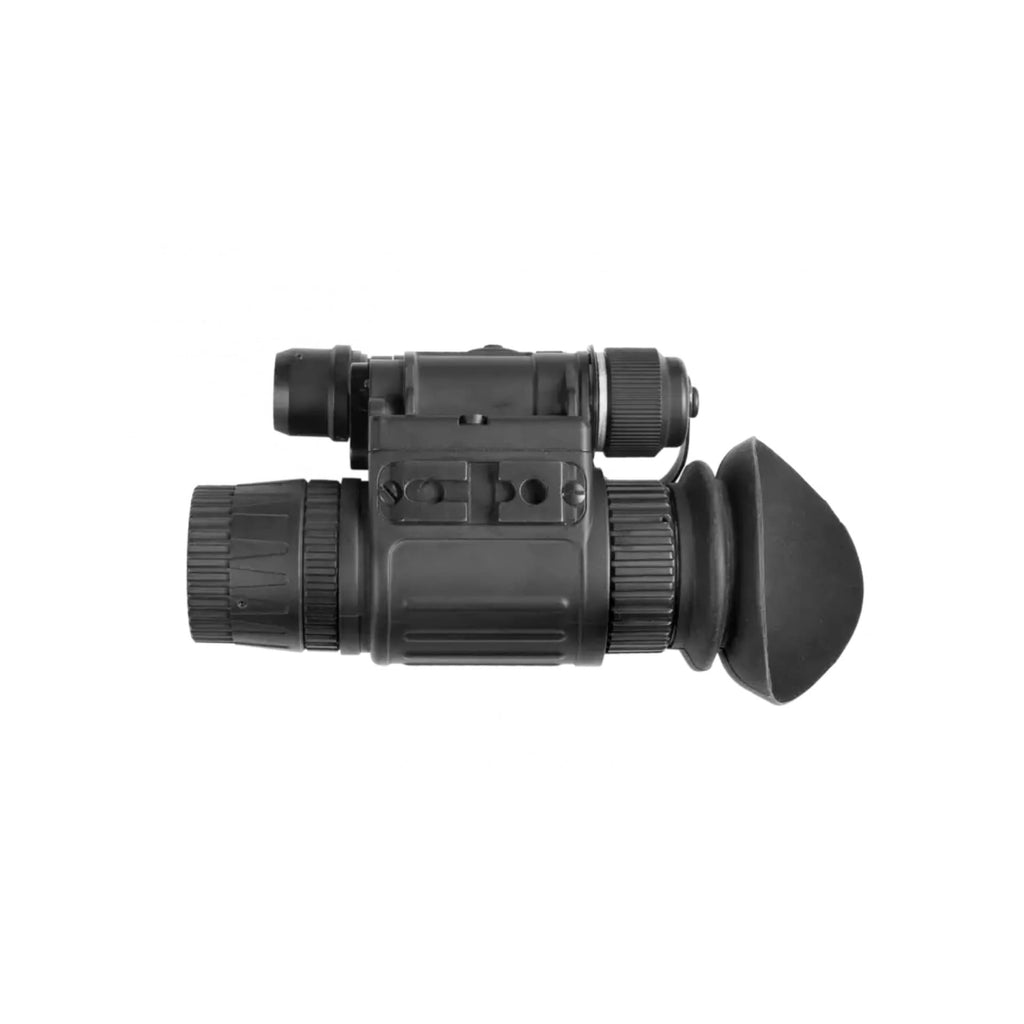

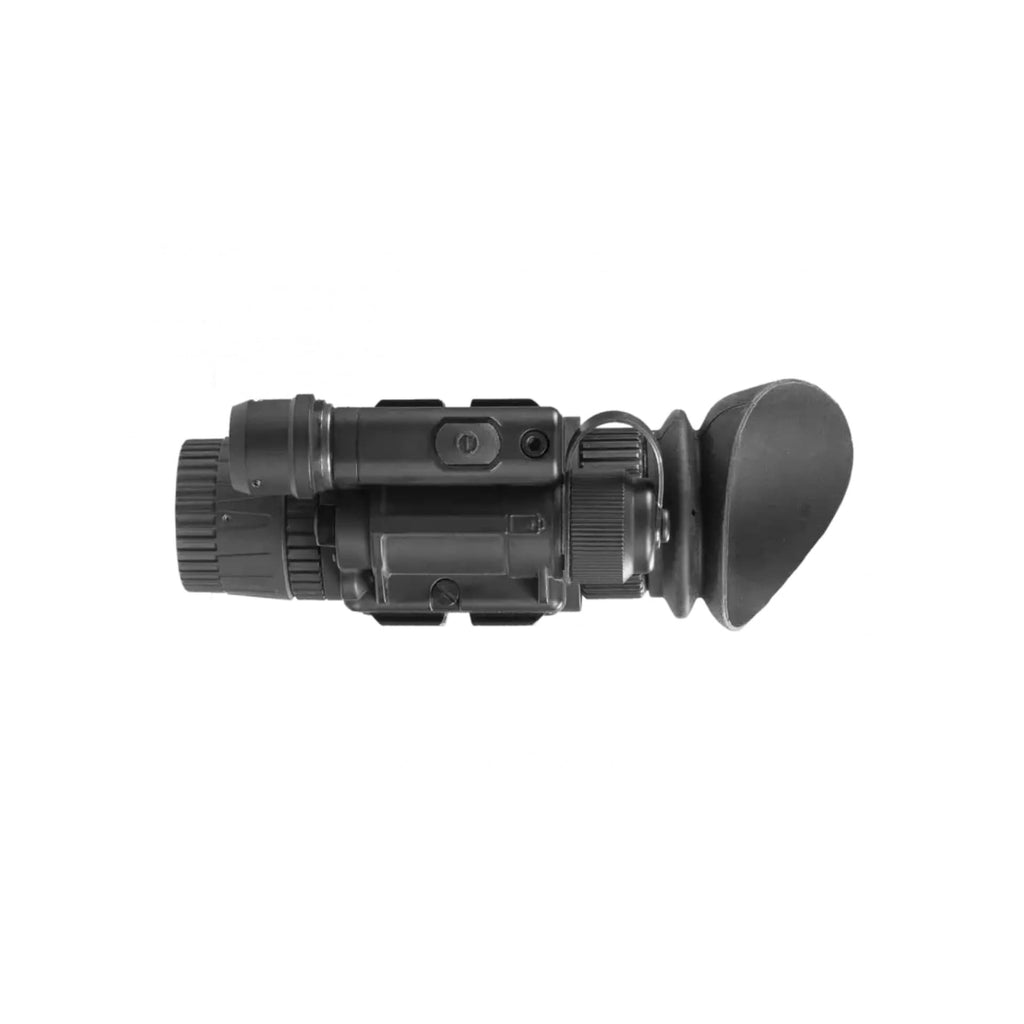

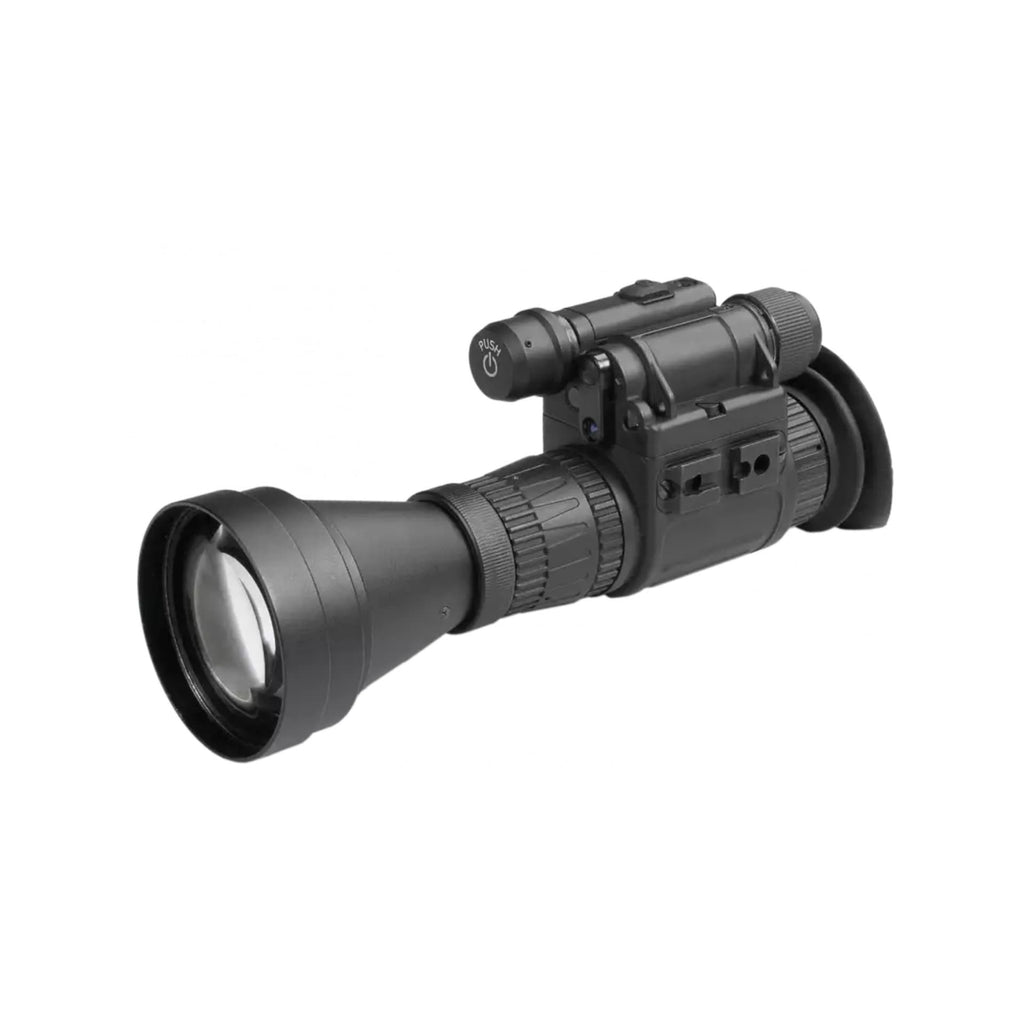

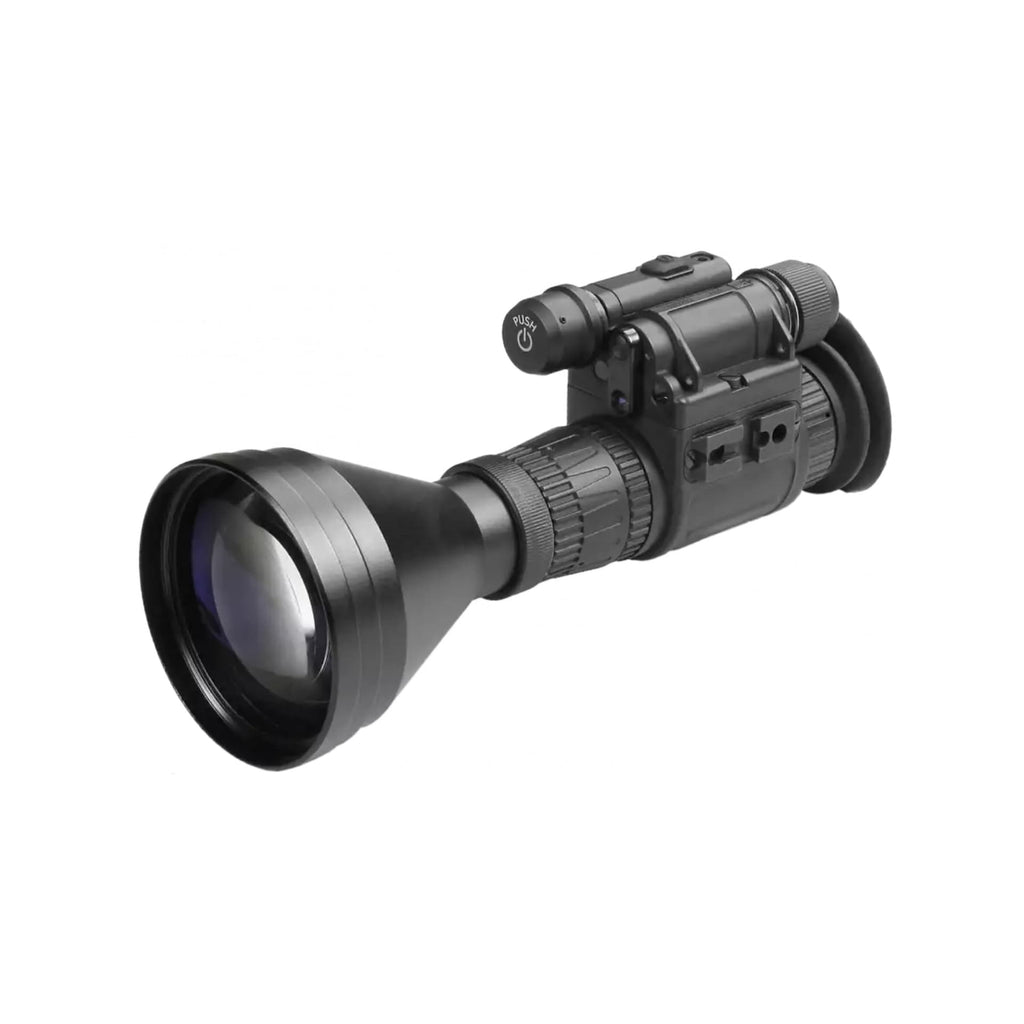

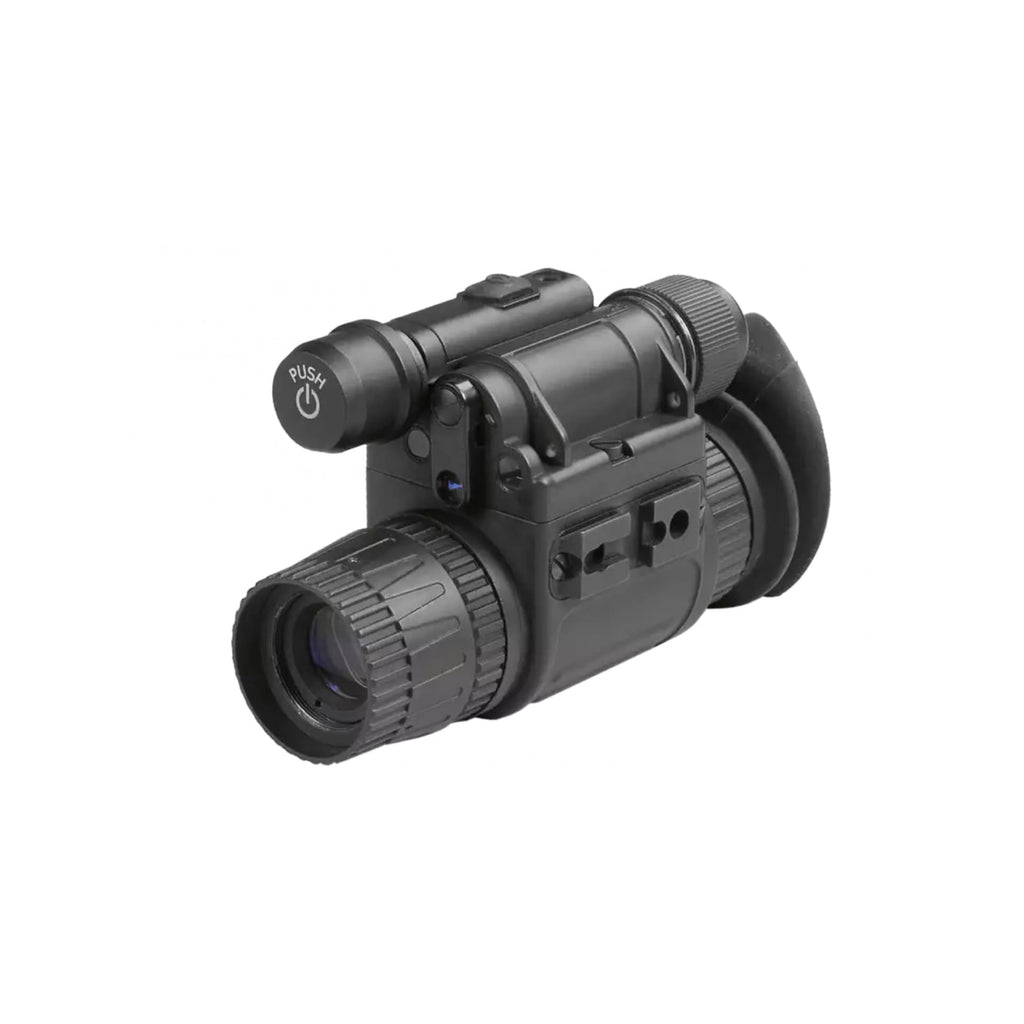

The NVM-50 is the standard by which all compact multi-use monoculars should be judged, now and in the future. The NVM-50 employs optics that are equal or superior to current Military-issue night vision devices, built into a rugged, compact, and ergonomic composite housing. We built this device to exceed user expectations and MIL-SPEC-810 specifications; as a result, the NVM-50 offers unmatched performance even in rain, salt water, temperature extremes, and high-humidity environments. Its 51° field of view (FOV) covers a large visual range, without requiring the operator to shift the position of the device. The NVM-50 is available with a vast array of accessories, including 3x and 5x magnification lenses for mid to long-range viewing; head or helmet mounts to enable handsfree operation; and, a detachable IR illuminator for long-range use.
AGM NVM-50 NL3 NIGHT VISION MONOCULARS
Description
Features
- Wide 51° field of view
- Compact, sturdy design

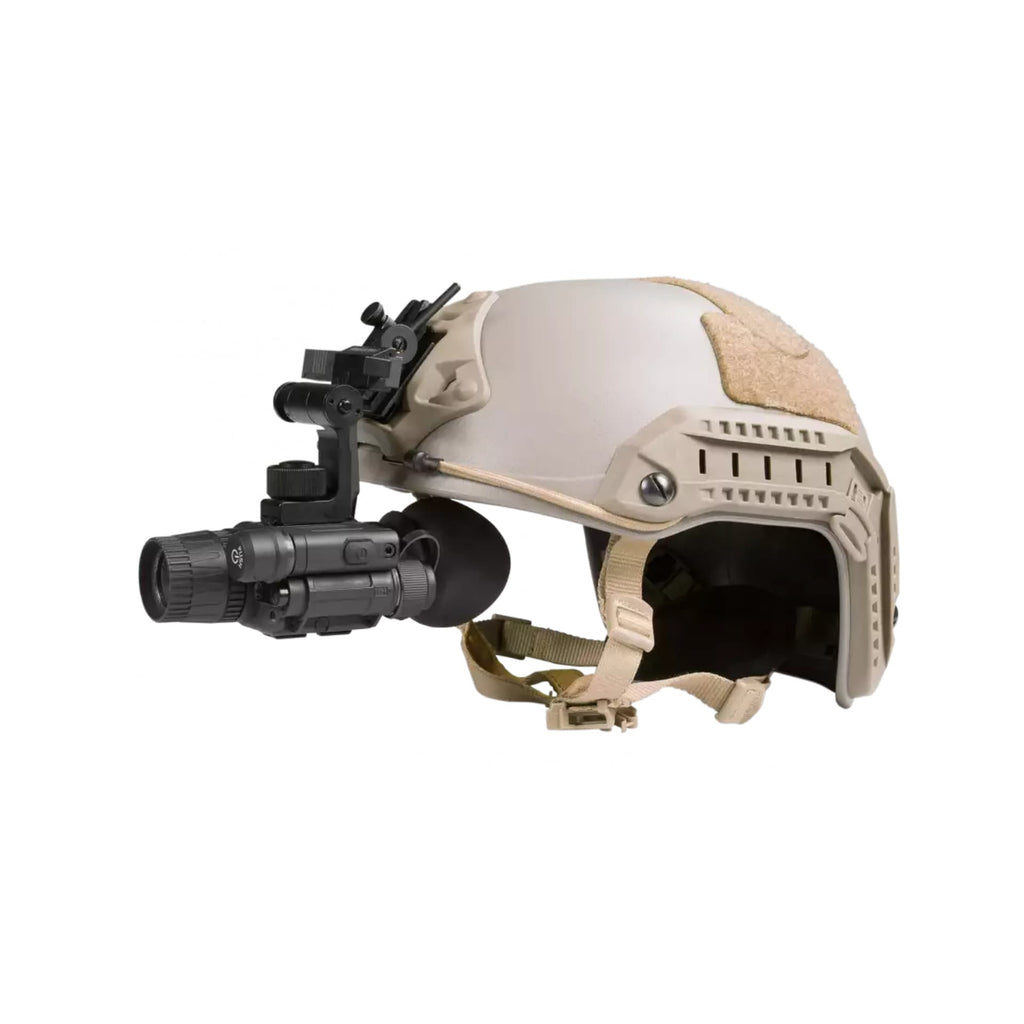

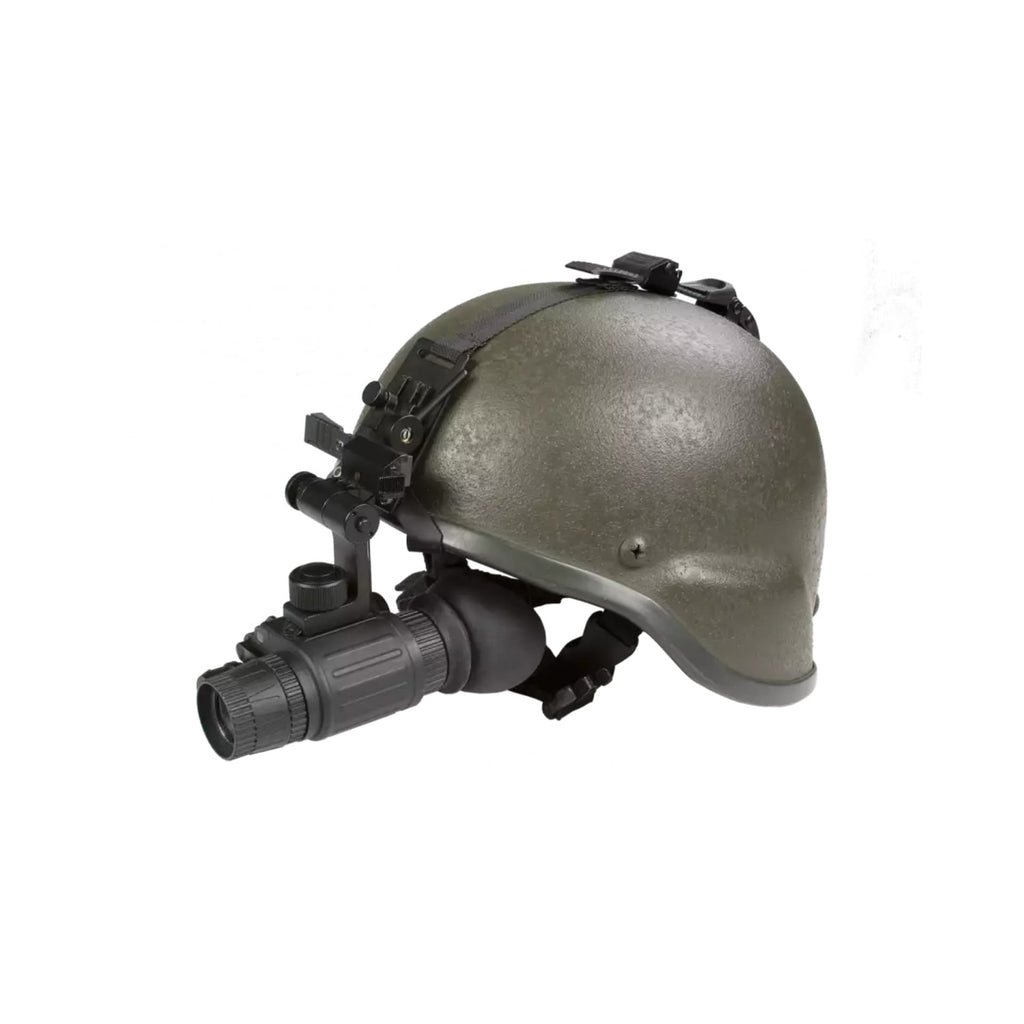

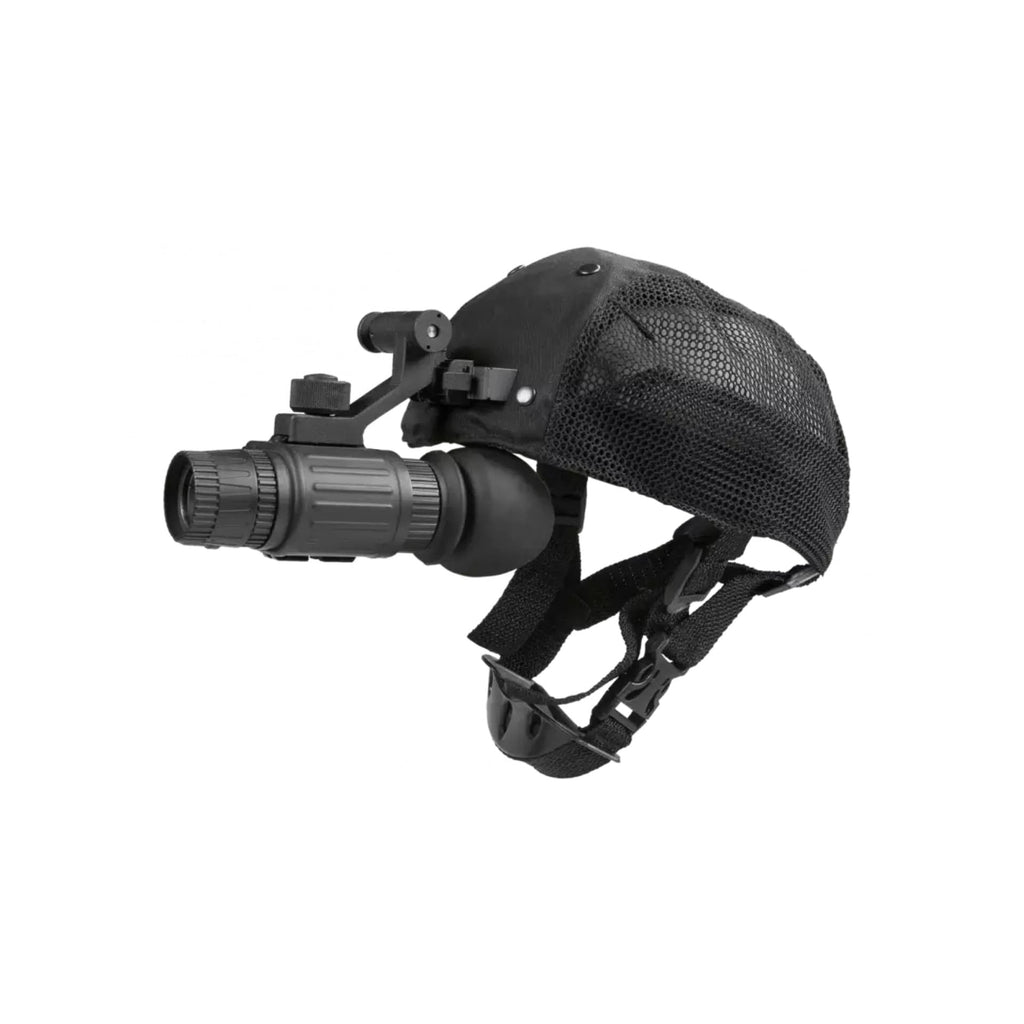

- Head- or helmet-mountable for hands-free usage
- Bright light cut-off system
- Ergonomic, simple, easy-to-operate controls
- Utilizes a single CR123A Lithium or AA battery
- Built-in Infrared illuminator and flood lens
- Limited 3-year warranty
Characteristics:
Image Intensifier Tube: Gen 2+ "Level 3"
Magnification: 1x (3x and 5x optional)
Lens System: 19 mm; F/1.26
FOV: 51°
Package Includes:
- Night Vision Monocular
- Lens Cloth
- Soft Carrying Case
- Manual
Specifications:
|
Image Intensifier Tube |
Gen 2+ "Level 3" |
|
Resolution |
45-51 lp/mm |
|
Field of view cleanness by zone |
Gen 2 IIT NL3 offers good quality at competitive pricing. |
|
Magnification |
1x (3x and 5x optional) |
|
Lens System |
19 mm; F/1.26 |
|
FOV |
51° |
|
Focus Range |
0.25 m to Infinity |
|
Eye Relief |
17 mm |
|
Diopter Adjustment |
-6 to +2 dpt |
|
Led Indicators |
- Low Battery - IR On - Excessive Light Conditions |
|
Automatic Brightness Control |
Yes |
|
Bright Light Cut-Off |
Yes |
|
Automatic Shut-Off System |
Yes; Two power levels |
|
Battery Type |
One CR123A (3V) or AA (1.5 V) |
|
Battery Life (Operating) |
Up to 40 hours at 20°C |
|
Operating Temperature Range |
-40°C to +50°C (-40°F to +122°F) |
|
Storage Temperature Range |
-50°C to +50°C (-58°F to +122°F) |
|
Weight |
0.34 kg (0.75 lbs) |
|
Overall Dimensions |
110 × 49 × 73 mm (4.3 × 1.9 × 2.8 in) |
|
Package Includes |
Night Vision Monocular, Lens Cloth, Soft Carrying Case, Manual |
