AGM NVG-40 NW1 Night Vision Goggle/Binocular

  • Sale
  • Regular price R 158,849.00
Tax included. Shipping calculated at checkout.

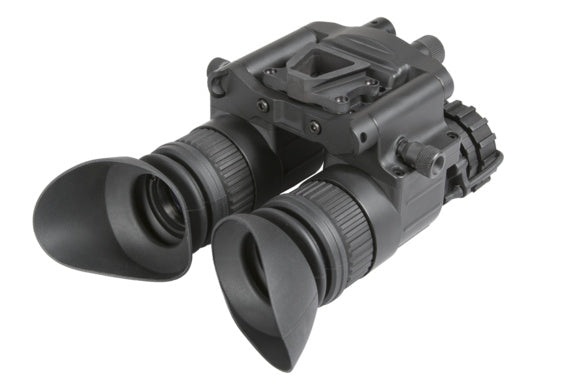

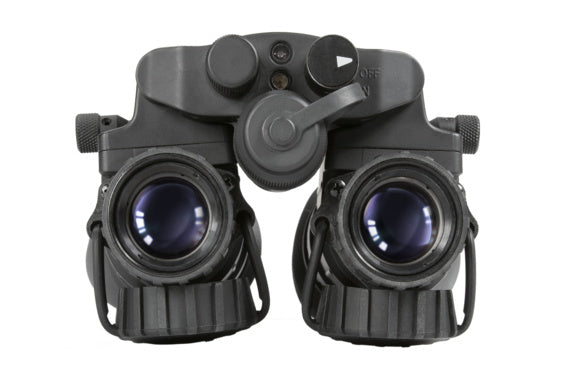

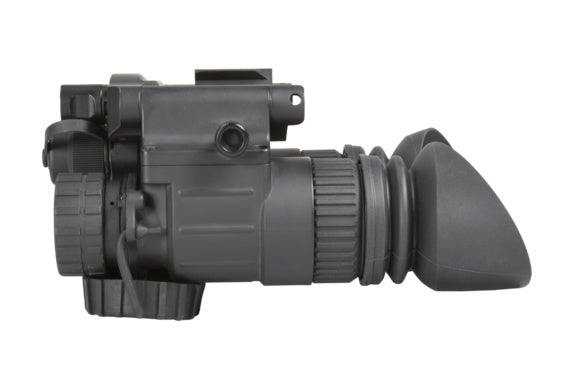

AGM NVG-40 NW1 Dual Tube Night Vision Goggle/Binocular Gen 2+ "White Phosphor Level 1"

The AGM NVG-40 is a dual-channel night vision system. With a 40° field of view, it provides a large visual field without needing to move the binoculars. The NVG-40 uses advanced multi-coated optics and is built to last with a compact composite housing. Operating from a single AA alkaline battery or CR123A battery, the NVG can run up to 20 hours. Also equipped with an integral infrared illuminator for reading in the dark.

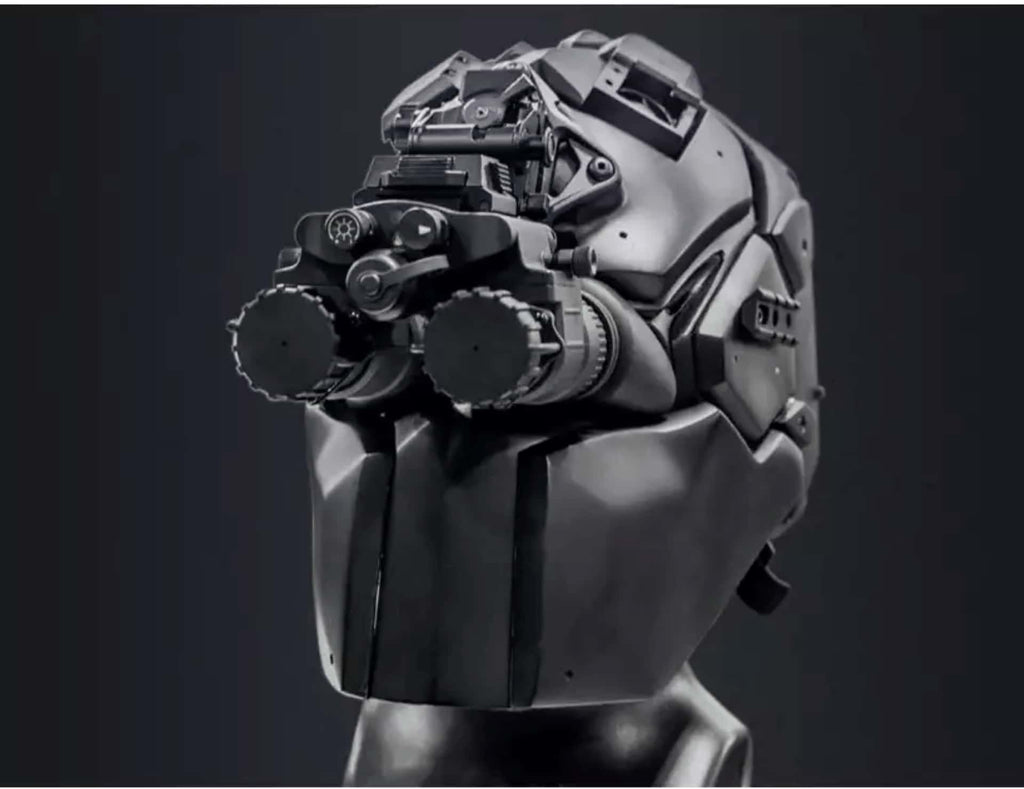

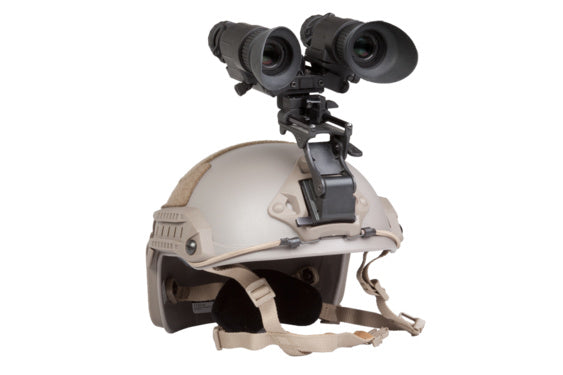

For hands-free use of the NVG, it can be installed to many various mounts, such as the AN/PVS-7D, AN/PVS-14, AN/PVS-7A/C, AN/PVS-15, and AN/PVS-18 mounts, or to the mounts with mini-rail interface.

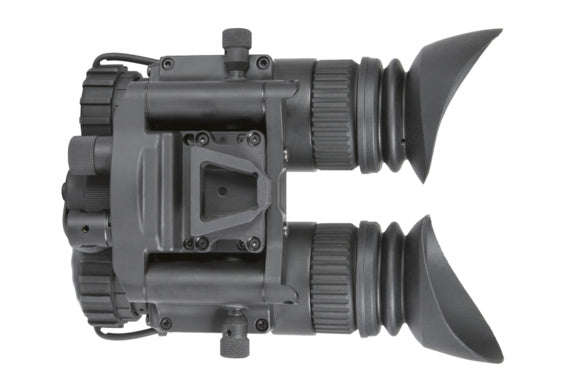

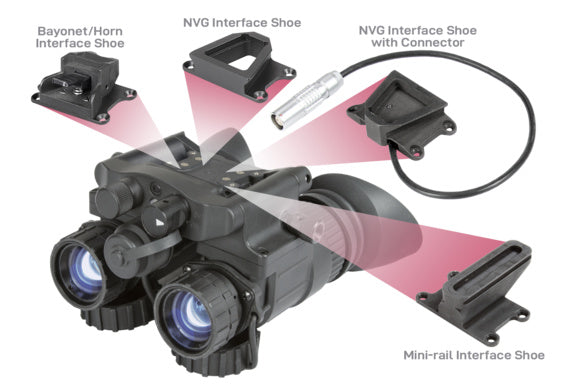

NVG Interface Shoe (preinstalled) is used for installing the NVG to a either standard dovetail type headset and helmet mount.


Bayonet/Horn Interface Shoe (included) is used for installing the NVG to a either standard bayonet/horn type headset and helmet mount.

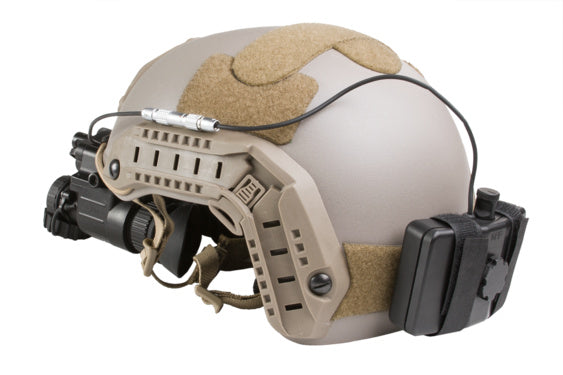

NVG Interface Shoe with Connector (optional) is used for installing the NVG-40/NVG-50 to either standard dovetail type headset and helmet mounts and connecting the Battery Pack.

Mini-Rail Interface Shoe is used for installing the NVG to the mounts with mini-rail interface. Mini-Rail Interface Shoe is included to the optional AGM Goggle Kit W and AGM Helmet Mount.

Characteristics

  • Image Intensifier Tube: Gen 2+ "White Phosphor Level 1"
  • Magnification: 1x
  • Lens System: 27 mm, F/1.3
  • FOV: 40°

Key Features

  • Redundant dual-tube design
  • True stereoscopic vision
  • Lightweight & compact
  • Head or helmet mountable for hands-free operation
  • Bright light cut-off
  • Ergonomic, simple, easy to operate controls
  • Built-in Infrared illuminator and flood lens
  • Utilizes single CR123A lithium or AA battery
  • Limited 3-year warranty

Specifications

Image Intensifier Tube

Gen 2+ "White Phosphor Level 1"

Resolution

51-64 lp/mm

Filed of view
cleaness of zone

Gen 2 IIT NW1 is the highest resolution and the cleanest offered by AGM. There are practically no visible spots in Zone 1.

Magnification

1x

Lens System

27 mm, F/1.3

FOV

40°

Focus Range

0.25 m to Infinity

Eye relief

25mm

Diopter Adjustment

-6 to +2 dpt

Led Indicators

Low battery; IR On; Excessive light conditions

Infrared Illuminator

Yes

Manual gain control

Yes

Bright Light Cut-Off

Yes

Automatic Shut-Off System

Yes

Battery Type

One CR123A (3V) or AA (1.5 V)

Battery Life (Operating)

Up to 20 hours at 20°C (up to 80 hrs with optional battery pack)

Operating Temperature Range

-40°C to +50°C (-40°F to +122°F)

Storage Temperature Range

-50°C to +70°C (-58°F to +158°F)

Weight

645 g (1.42 lbs)

Overall Dimensions

115 × 118 × 74 mm (4.5 × 4.6 × 2.9 in)

Package Includes

Night Vision Goggles, Soft Carrying Case, Lens Cloth, Battery Adapter, User Manual


Related Documents

Get a Quote

Please complete the form below to submit your quote request.

EXPORT RESTRICTIONS:

Product shown herein is subject to US export regulations and may require a license prior to export. Any diversion contrary to US Government regulations is prohibited.
