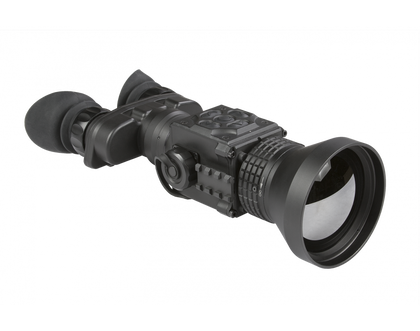

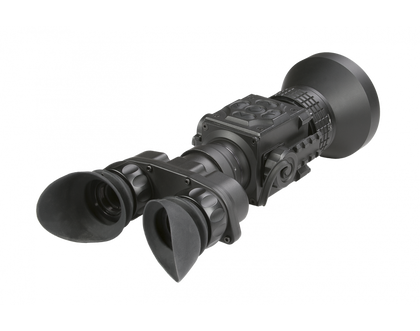

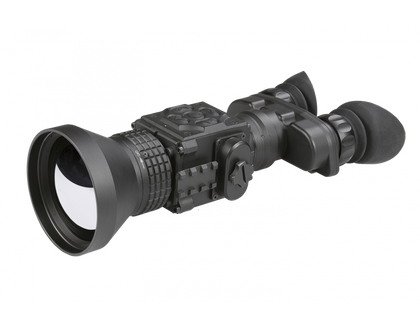

AGM Explorator TB75-384 Long Range Thermal Imaging Bi-Ocular 384x288 (50 Hz), 75 mm lens

  • Sale
  • Regular price R 106,999.00
Tax included. Shipping calculated at checkout.




AGM Explorator TB75-384 Long Range Thermal Imaging Bi-Ocular 384x288 (50 Hz), 75 mm lens

Description and Features

The AGM Explorator is the latest and most technologically advanced thermal imaging device for observation currently available on the market. Bi-ocular is made of high-grade aluminum and magnesium alloy, making the unit both durable and lightweight. Due to its waterproof capability the device performs well even in severe weather conditions and challenging environment. The Explorator is available in two modifications – with 50 mm and 75 mm Germanium objective lenses - which allow selecting the most suitable version for the task at hand. The unit can be easily mounted on a tripod which grants operator convenient/hands free use of thermal binocular.
The Explorator’s user-friendly interface, comfortable and ergonomic buttons makes adoption and application incredibly simple. The thermal imaging unit offers ten different variants of image palettes: white hot/black hot, etc. that can be easily adapted depending on different environmental conditions.
This high-tech bi-ocular can take either two CR123A 3V Lithium Batteries or two CR123 rechargeable batteries, with voltage ranging from 3.0 V to 3.7 V. In addition, the external battery pack (5V) connected via micro-USB port provides an additional operating time.


Key features

  • Lightweight and compact design
  • Dual eye viewing system for comfortable, extended viewing sessions
  • Superior clarity, versatility and reliability
  • Easy to operate control panel
  • High resolution display
  • 2x and 4x digital zoom
  • Picture in Picture mode with 2x digital zoom
  • Automatic or manual (silent) calibration
  • Stadiametric rangefinder
  • Powered by two standard CR123A batteries
  • External power supply via micro-USB
  • Optional external Wi-Fi module and video recorder
  • Integral MIL-STD-1913 rail on unit for optional accessories

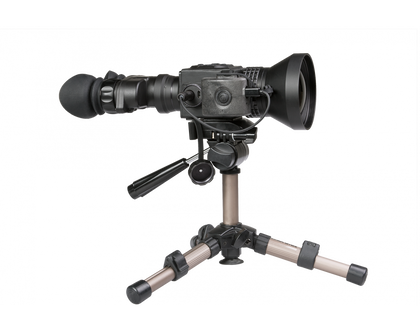

  • Tripod mountable
  • Limited 3-Year Warranty
Specifications

Detector Type

17μm Uncooled Microbolometer

Resolution

384x288

Refresh Rate

50 Hz

Field of View

7.5° x 5.6°

Optical magnification

2.5×

Digital Zoom

1×, 2×, 4×

Diopter adjustment range

-5 to +5 dpt

Focusing range

10 m to infinity

Display

HD Display 1024x768

Video/Photo Format

AVI / JPG

Temperature imaging palettes

11 Image palettes

Interfacing

S620 Connector (Power In, Analog Video In/Out, Digital Video Recorder); Micro-USB (External Battery Pack)

Battery Type

Two CR123A 3V Lithium Batteries

Battery Life (Operating)

Up to 5 hr

Power supply

5V USB / 3.6~7.2V

Operating Temperature Range

-40°C to +70°C (-40°F to +158°F)

Degree of Protection

IP67

Weight

0.75 kg (1.6 lbs)

Overall Dimensions

273 x 125 x 64 mm (10.7 x 4.9 x 2.5 in)

Package Inludes

Thermal Imaging Bi-Ocular, Lens Cloth, Soft Carrying Case, User Manual
