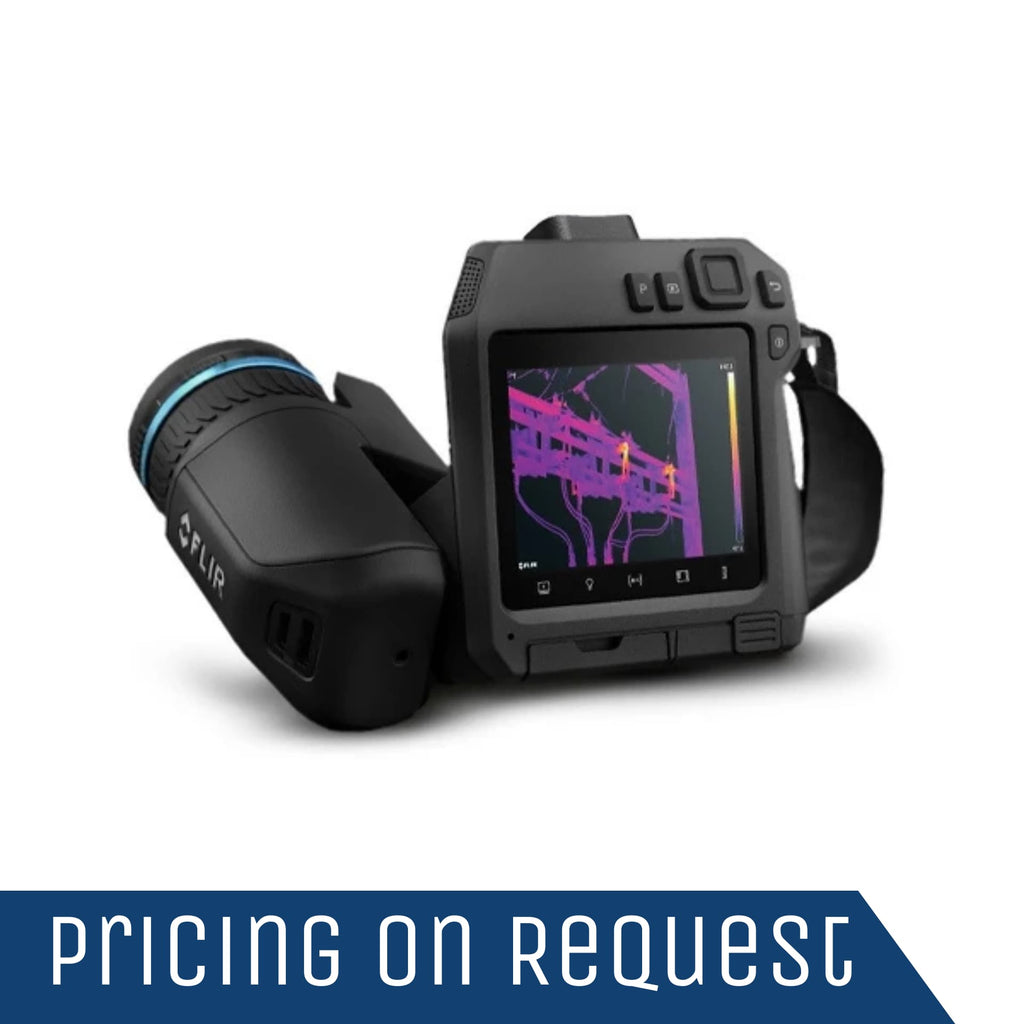

FLIR T840 Thermal Inspection Camera

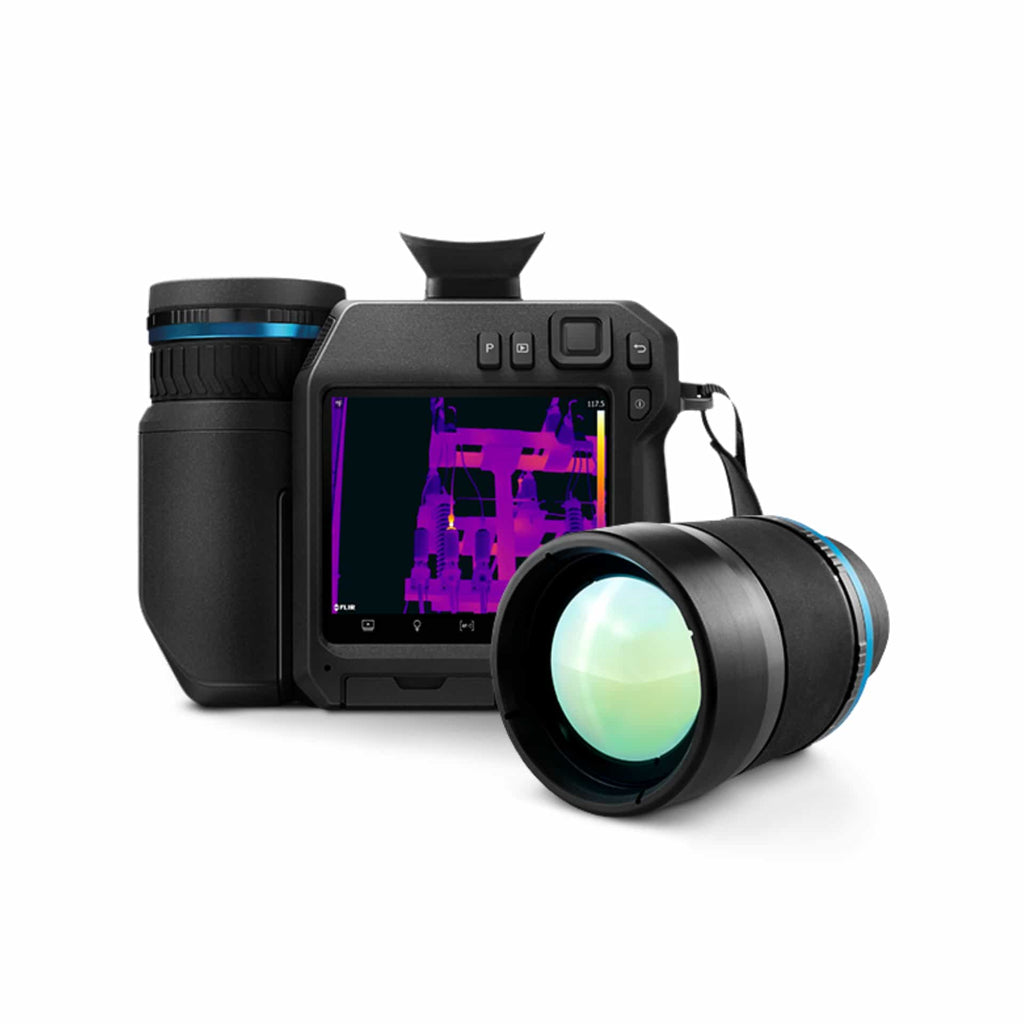

The FLIR T840 infrared camera is designed to help electric utility and other thermography professionals comfortably survey equipment both indoors or outdoors and seek out signs of failure all day long. Thanks to an integrated eyepiece viewfinder and a bright 4-inch color LCD display, the T840 makes it easy to conduct inspections outside in bright, challenging light conditions. The 180° rotating lens platform and thoughtful ergonomic design helps users quickly diagnose failing components in hard-to-reach areas. A 6° telephoto lens option is available to ensure accurate temperature measurement of small targets from farther distances.
-
SAFELY AND COMFORTABLY ASSESS EQUIPMENT
Scan large areas from a safe distance with 464 x 348 resolution, and reduce the strain of full-day inspections with the 180° rotating optical block
-
MAKE CRITICAL DECISIONS QUICKLY
Get industry-leading image clarity from FLIR Vision Processing™, MSX®, and UltraMax® to help you make the right call – fast
-
DESIGNED TO MAKE YOUR WORK EASIER
Get the most out of your workday with rapid reporting features that help you organize findings in the field
SPECIFICATIONS
OVERVIEW
- IR Resolution
- 464 x 348 (161,472 pixels)
- Laser Pointer
- Yes
- Programmable Buttons
- 2
- Spectral Range
- 7.5 - 14.0 µm
- Text
- Predefined list or touchscreen keyboard
- Time Lapse
- 10 sec to 24 hrs
- Voice
- 60 sec. recording added to still images or video via built-in mic (has speaker) or via Bluetooth
- Weight & Dimensions (without lens)
- 1.3 kg (2.9 lbs), 140 x 201 x 84 mm (5.5 x 7.9 x 3.3 in)
CONNECTIONS & COMMUNICATIONS
- Communication Interfaces
- USB 2.0, Bluetooth, Wi-Fi
- Storage Media
- Removable SD card
- Video Out
- DisplayPort over USB Type-C
- METERLiNK
- Yes
ENVIRONMENTAL
- Operating Temperature Range
- -15°C to 50°C (5°F to 122°F)
- Storage Temperature Range
- -40°C to 70°C (-40°F to 158°F)
- Shock & Vibration & Encapsulation
- 25 g / IEC 60068-2-27, 2 g / IEC 60068-2-6 / IP 54; EN/UL/CSA/PSE 60950-1
IMAGING & OPTICAL
- Color palettes
- Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
- Detector Type and Pitch
- Uncooled microbolometer, 17 µm
- Digital Camera
- 5 MP, with built-in LED photo/video lamp
- Digital Zoom
- 1-6x continuous
- f-number
- f/1.5
- Focus
- Continuous with laser distance meter (LDM), one-shot LDM, one-shot contrast, manual
- Global Positioning System [GPS]
- Automatic image tagging
- Image Frequency
- 30 Hz
- Image Sketch
- From touchscreen, on infrared image only
- Lens Identification
- Automatic
- Minimum Focus Distance
- lens - 1.0 m;
- Non-Radiometric IR or Visual Video
- H.264 to memory card
- Non-radiometric IR video streaming
- H.264 or MPEG-4 over Wi-Fi MJPEG over UVC or Wi-Fi
- Picture-in-Picture
- Resizable and movable
- Radiometric IR video recording
- Real-time radiometric recording (.csq)
- Radiometric IR video streaming
- Yes, over UVC or Wi-Fi
- Viewfinder
- Yes
- UltraMax
- Quadruples pixel count; activated in menu and processed in FLIR Tools
- UltraMax Resolution
- 645,888 effective pixels
MEASUREMENT & ANALYSIS
- Accuracy
- ±2°C (±3.6°F) or ±2% of reading
- Area measurement information
- Yes; calculates area inside measurement box in m² or ft²
- Laser Distance Meter
- Yes; dedicated button
- Measurement Presets
- No measurement, center spot, hot spot, cold spot, User Preset 1, User Preset 2
- Object Temperature Range
- -20°C to 120°C (-4°F to 248°F); 0°C to 650°C (32°F to 1202°F); 300°C to 1500°C (572°F to 2732°F)
- Spot Meter
- 3 ea. in live mode
- Thermal Sensitivity/NETD
- <30 mK at 30°C (42° lens)
METER DATA
- Display
- 4", 640 x 480 pixel touchscreen LCD with auto-rotation
POWER
- Battery operating time
- Approx. 4 hours at 25°C (77°F) ambient temperature and typical use
- Battery Type
- Li-ion battery, charged in camera or on separate charger
SHIPPING INFORMATION
- Packaging
- Infrared camera with lens, small viewfinder eyecup, 2 batteries, battery charger, hard transport case, lanyards, front lens cap, power supplies, printed documentation, SD card (8 GB), cables (USB 2.0 A to USB Type-C, USB Type-C to HDMI, USB Type-C to USB Type-C)
STORAGE MEDIA
- Image File Format
- Standard JPEG with measurement data included
- Image Storage Mode
- Infrared, visual, MSX®, Picture-in-Picture
